Description
Latching switch
The Latching switch will remain on once it is pressed and stay on until it is pressed again.
Specification:

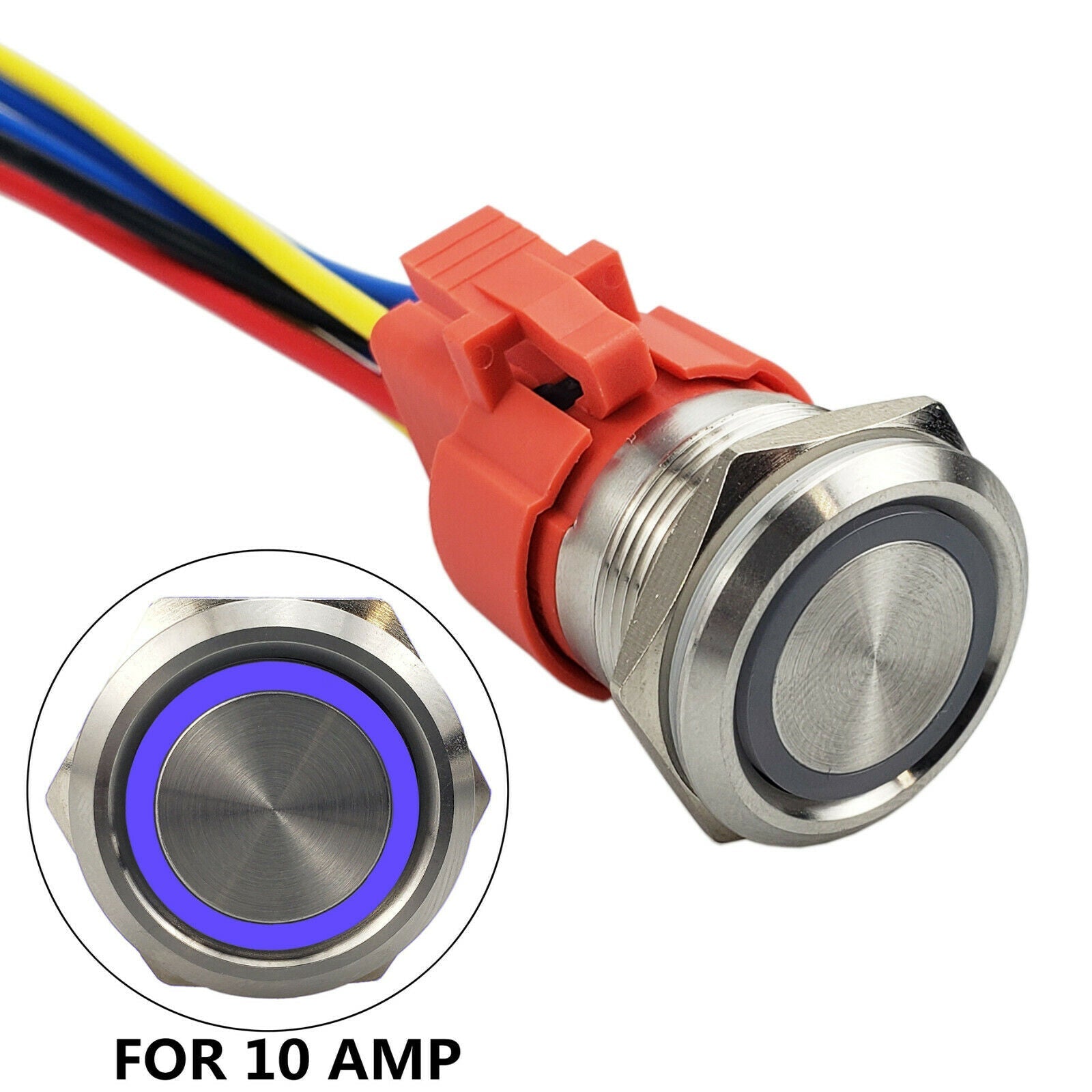

- Switch Rating:10A/12/24VDC
- Operation Temperature: -20 ℃ ~ +55℃
- Mechanical life: 2,000,000 cycles ( Old type is 1,000,000 cycles)
- Electrical life: 500,000 cycles ( Old type is 100,000 cycles)
- Panel thickness: 1 - 10mm
- Protection level: IP65, IK10
- Mounting Cut Hole: 22mm
- Operation Type: Latching- Switch Contact: 1NO 1NC
- LED Rating: 5 MA, AC/DC 12/24V

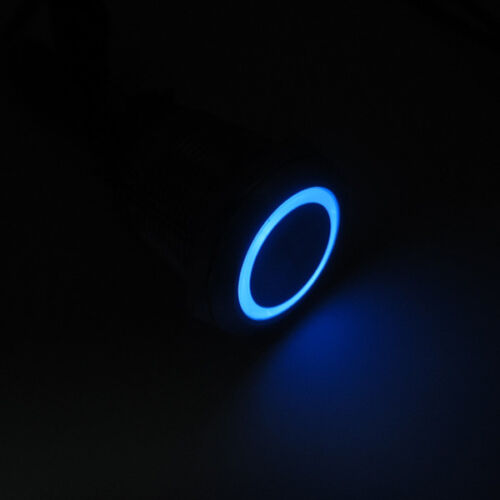

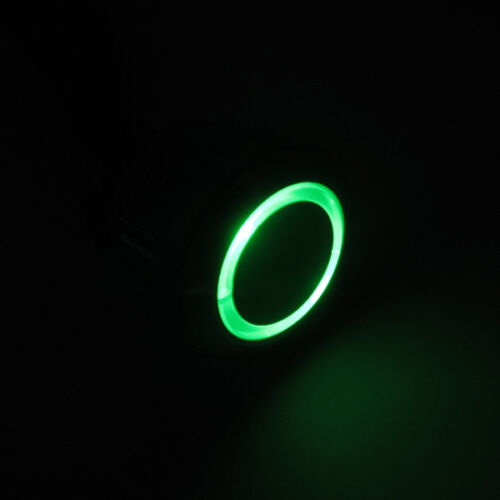

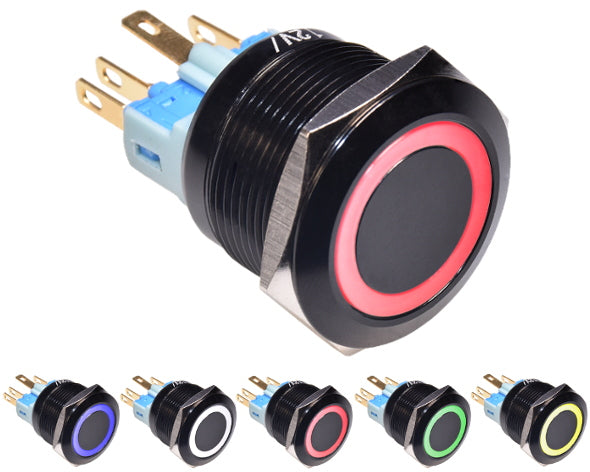

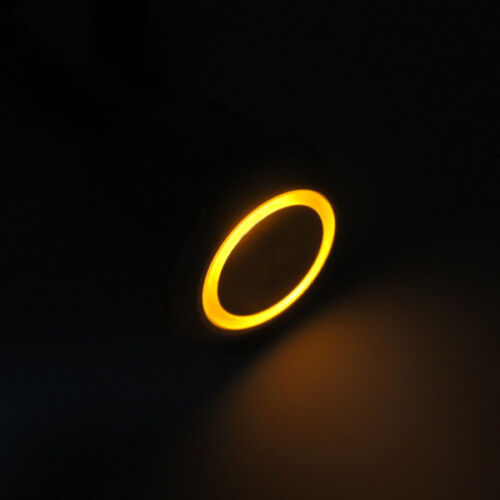

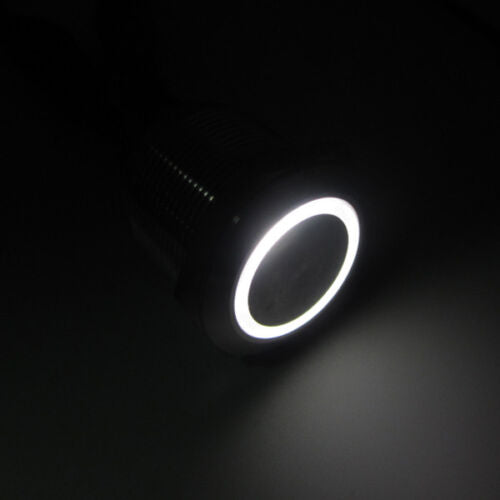

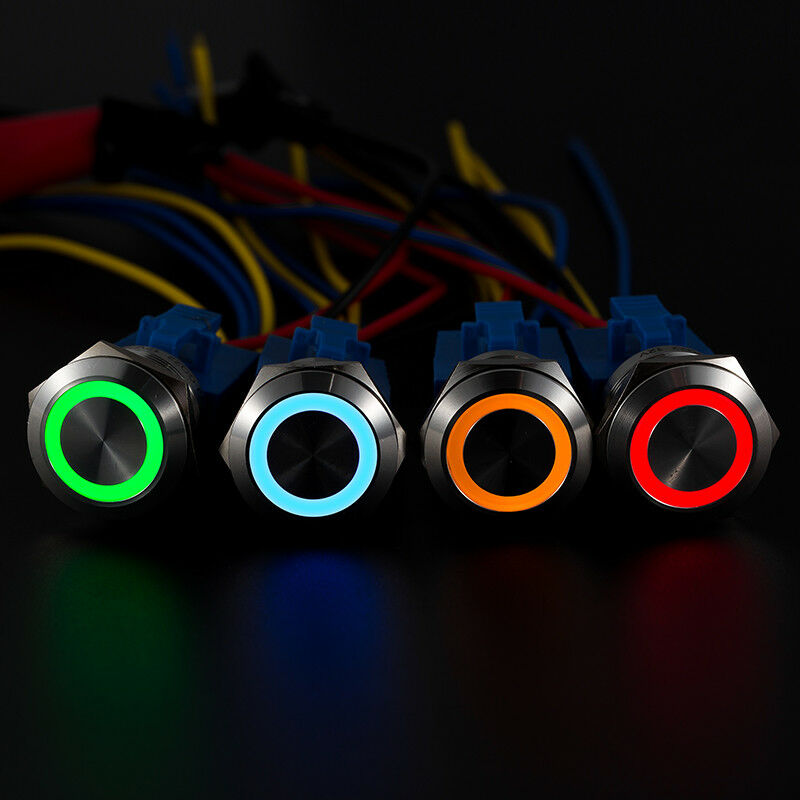

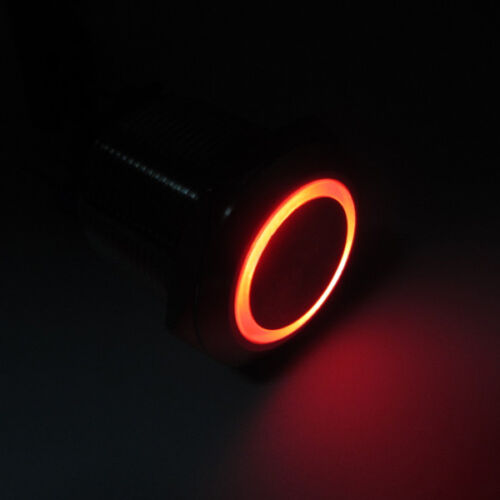

- LED Pattern: Ring Indicator
- LED Life: 100,000 hours
- Contact Material: Silver alloy
- Button Material: Stainless Steel
Note:
- The switch come with a rubber O-ring which makes it splash resistant but it can NOT be submerged underwater.

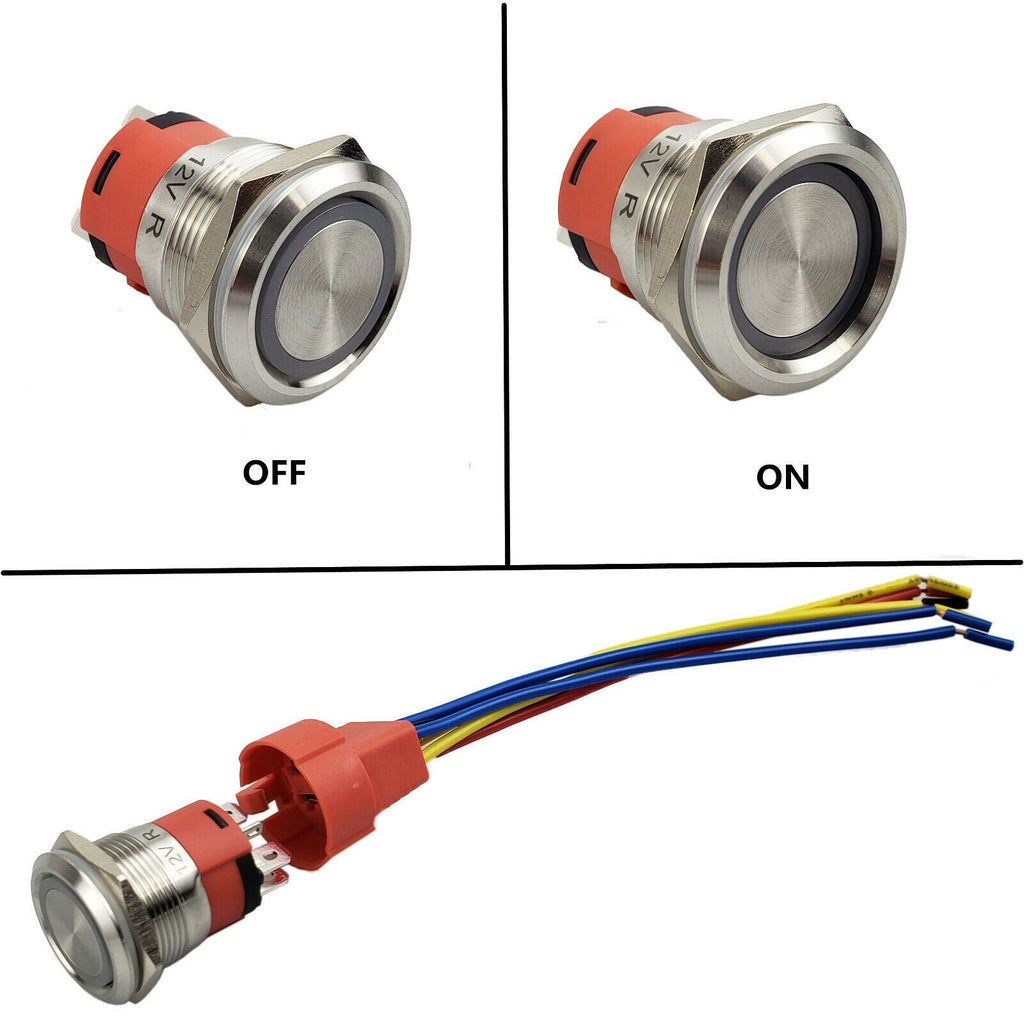

Packing Include: 1 x All New Design 22mm push button switch,1 x pigtail socket
- Shipping Dimensions: 12cm x 10cm x 3cm (L x W x H)
