Squadron Sport Pair

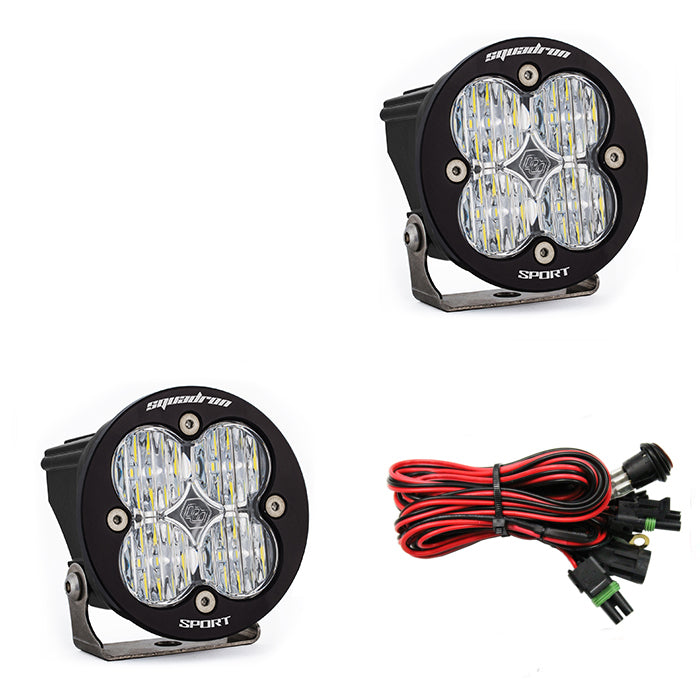

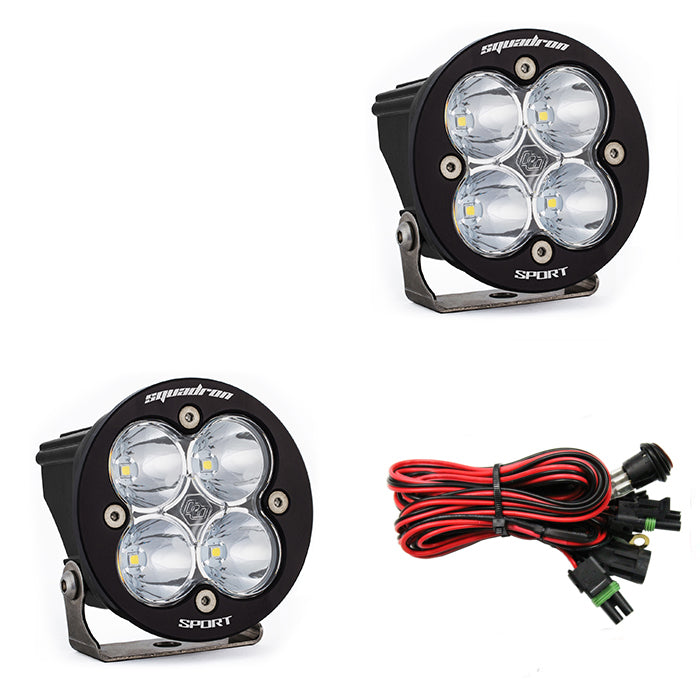

Two is better than one, right? We think so, which is why we're offering a pair of Squadron-R Sport LED auxiliary lights with wiring harness. Similar to the Squadron Sport, the Squadron-R Sport off-road lights produce 3,150 lumens of pure power to light up the trail on your nighttime off-roading excursions! The Squadron-R Sport has been designed for customers looking for LED performance with more traditional styling. The Squadron-R Sport has also been optimized for aftermarket bumpers featuring a 4” round hole. Enjoy nearly 50,000 hours of optimal performance out of this small, but high-performing auxiliary LED light.

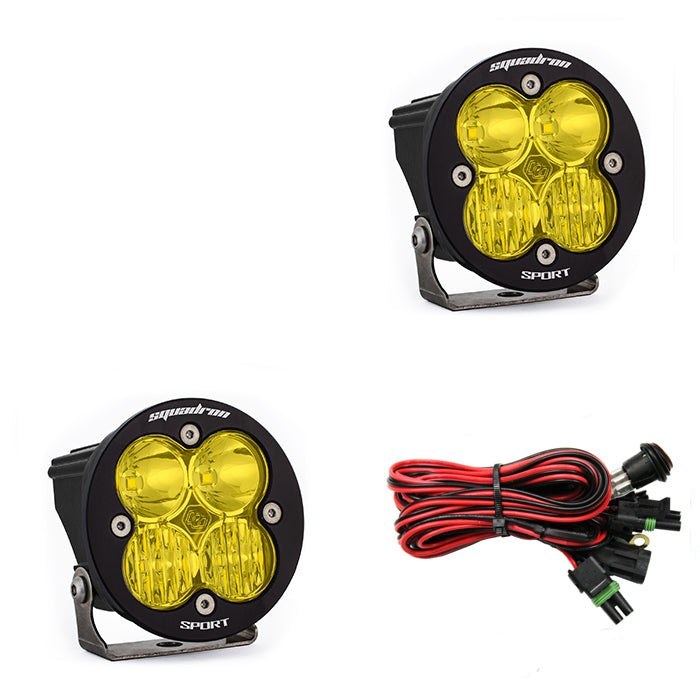

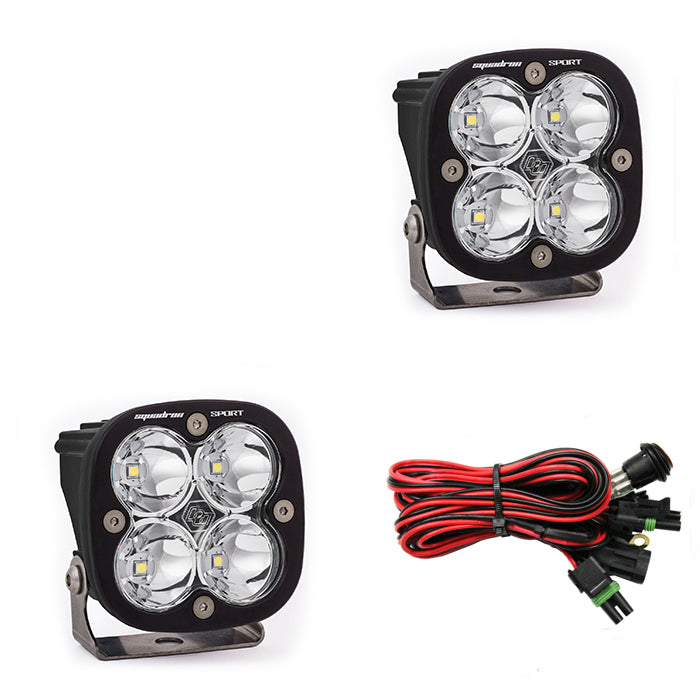

Two is always better than one, right?  We think so, which is why we’re offering a pair of Squadron® Sport LED auxiliary lights with wiring harness.  Although similar in aesthetics to the Squadron® Pro, the application for the Sport varies.  The Squadron® Sport utilizes 4 LEDs producing an impressive 3,150 lumens at 26 watts per light, making it ideal for near field, side/backup and scene lighting application.



Baja Designs Features:  Satisfactions Guarantee – 30 Day Money Back  Guarantee  Limited Lifetime Warranty – Complete Purchase Protection  uService® – Replaceable Lenses And Optics  ClearView® – All The Light, Right Where You Need It.  MoistureBlock™ – Waterproof, Rain Proof, Submersible  CopperDrive® – Only LED Driven At 100%  5000K Daylight – Less Driver Fatigue, Natural Color

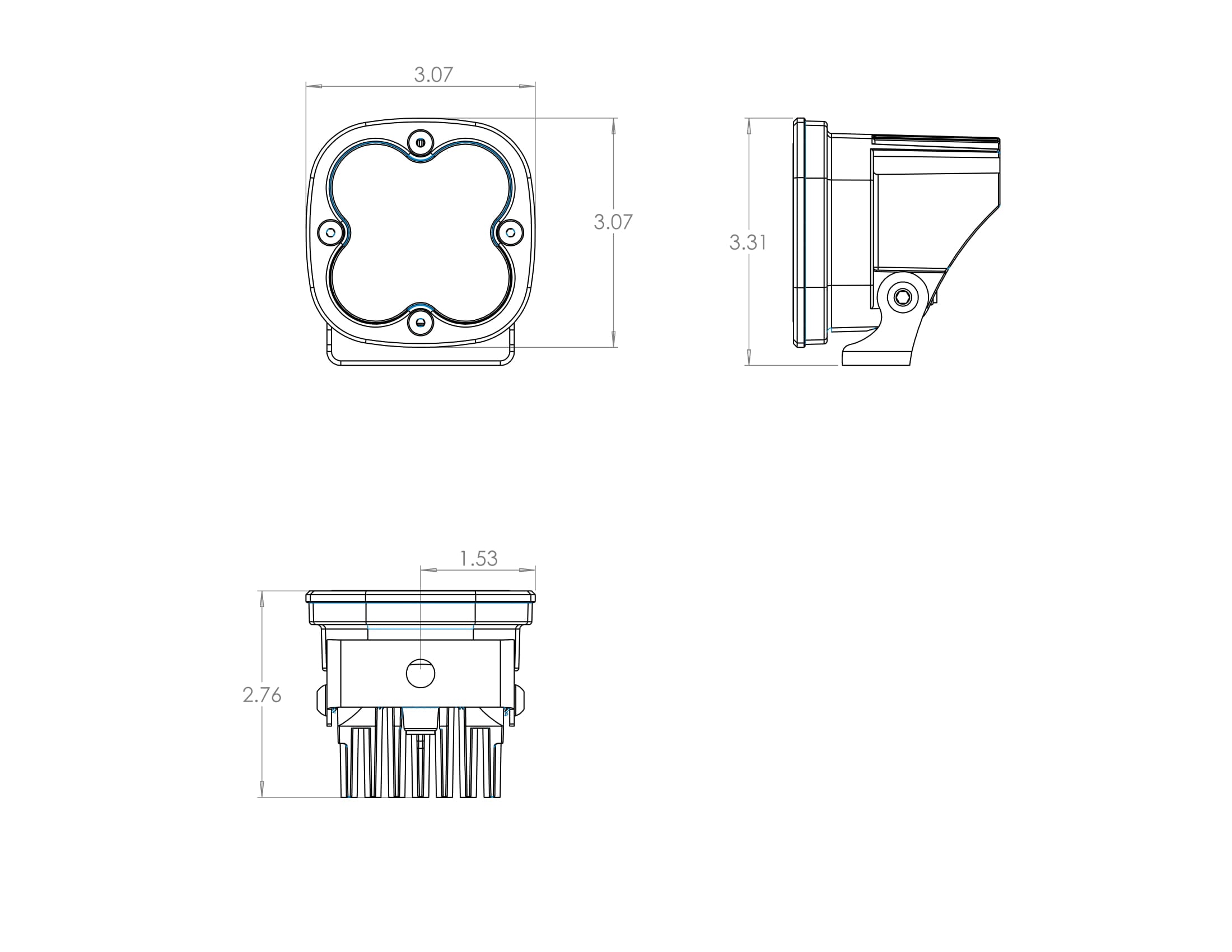

Specifications (per light):  Lumens: 3,150 Utilizing 4 LEDs  Wattage/Amps: 26W / 2A  Dimensions: 3.07" x 2.77" x 3.07"  Weight: 12 ounces  LED Life Expectancy: 49,930 Hours  Front Lens: Hard Coated Polycarbonate  Housing: Powder Coated Cast Aluminum  Bezel: Billet Machined Aluminum  Hardware & Bracket Material: Stainless Steel  Exceeds MIL-STD810G (Mil-Spec Testing)  Built-In Overvoltage Protection  IP69K (Waterproof, Submersible to 9ft)  IK10 Compliant (Mechanical Impact Testing)



Please note that this light does include a harness though if you’re interested in an upgraded harness please look up part: 640117

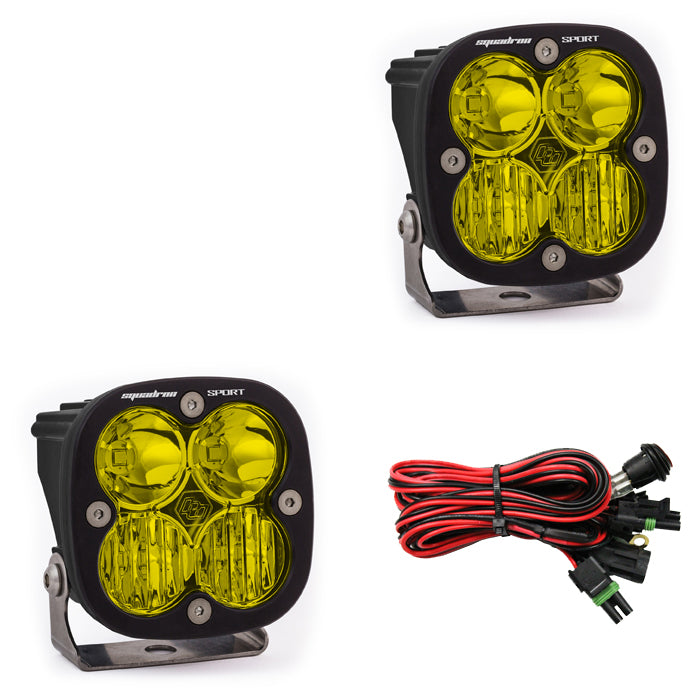

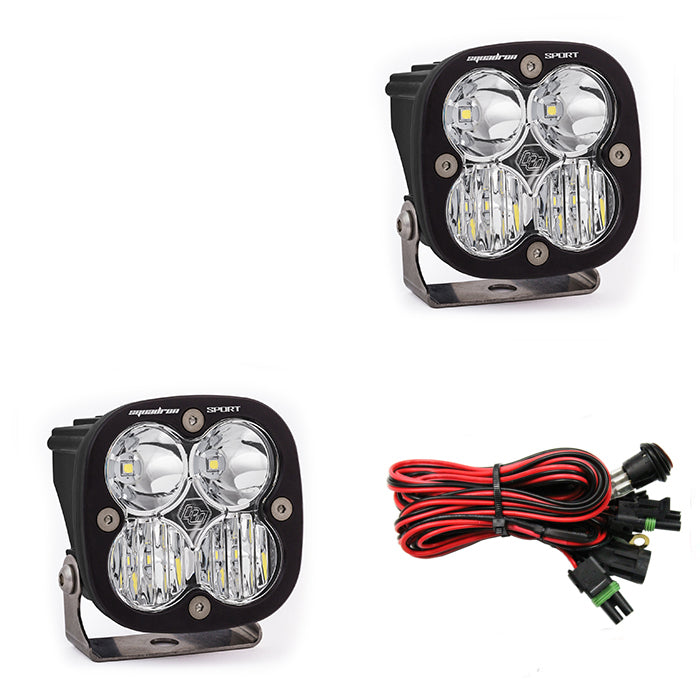

Includes:

• (2) Squadron® Sport LED Lights

• Mounting Brackets
• Wiring Harness

 

Patterns:

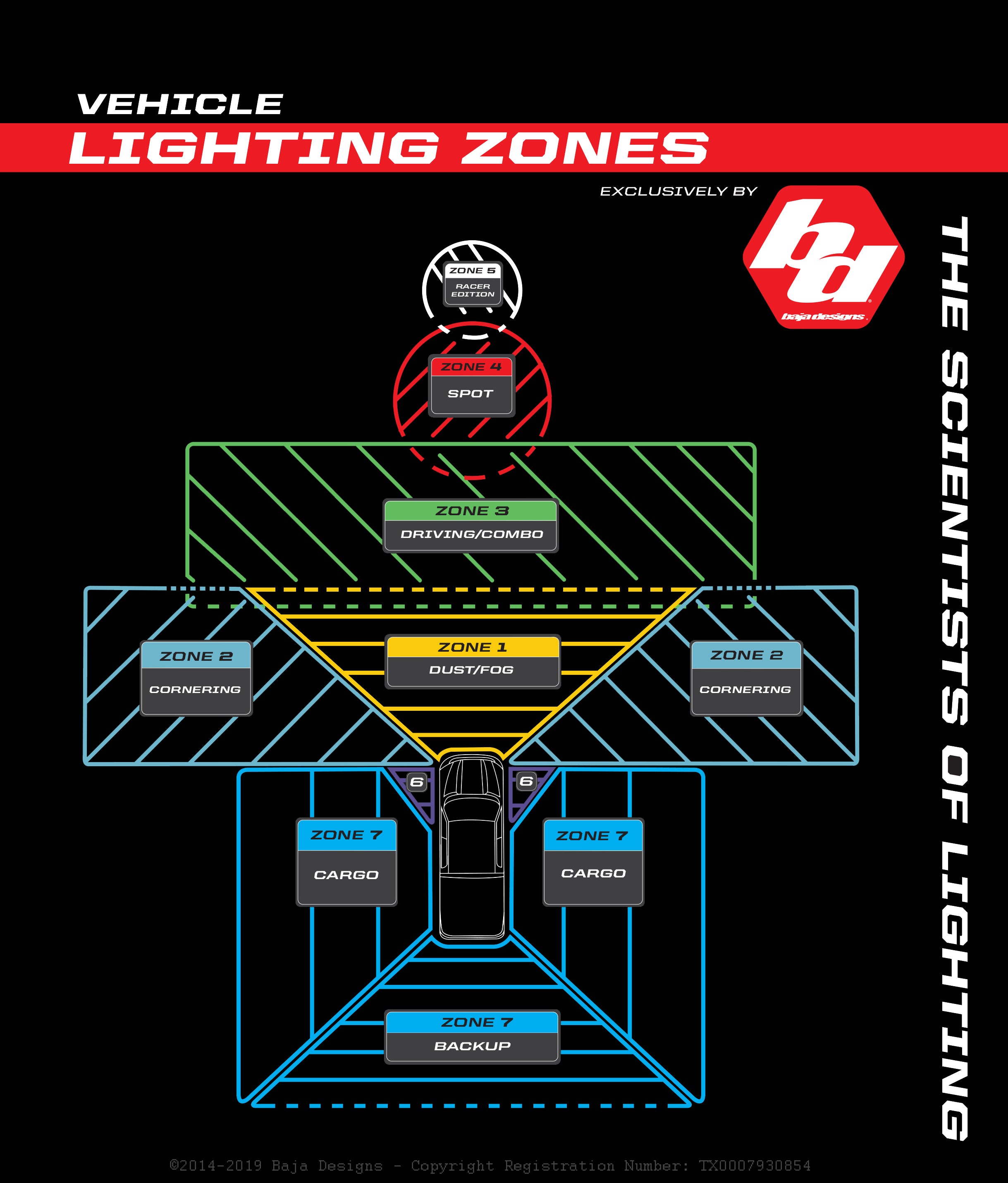

Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)





30w / 3,162 Lumens / Designed Specifically for Near Field, Midfield, Distance

Shipping Dimensions.

20.32cm x 20.32cm x 10.16cm (LxWxH)
