Description
- 0-2" Front Coilovers
- Sold in Pair
- 2006-2023
- 4x4

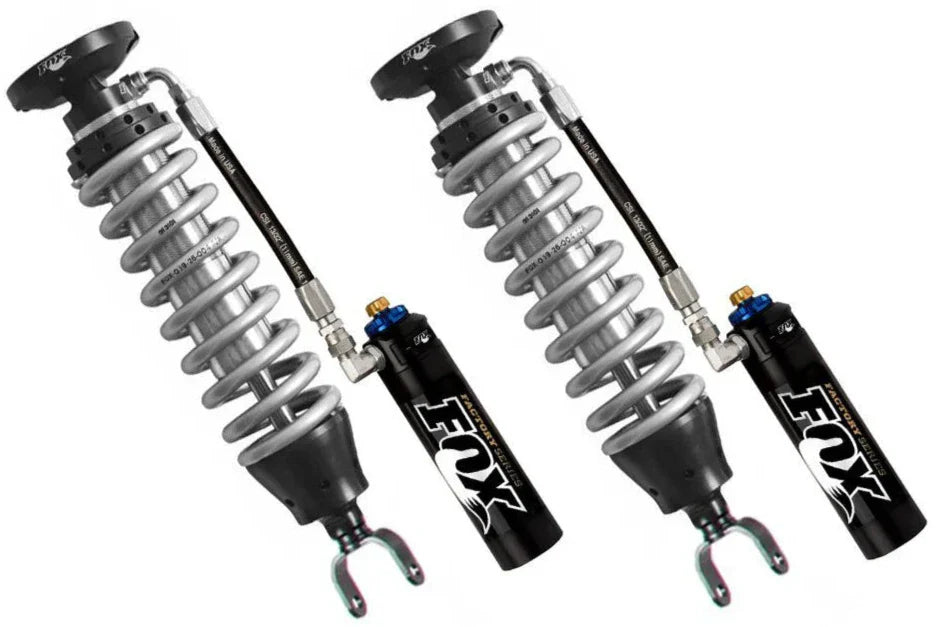

Our bolt-on Factory Race Series Coil-over Reservoir shocks provide improved damping in any terrain.
Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.
| Body | 2.5” smooth bore zinc plated seamless steel body |
|---|---|
| Body Plating | Zinc-plated and double-clear coated for long lasting finish |
| Reservoir | 2.5" Smooth bore and honed seamless alloy reservoir |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Spring | Application specific, adjustable 3.0 Eibach® racing springs |
| Shaft | 7/8" hard chrome plated steel shafts |
| Piston | 6061-T6 hard-anodized, high flow aluminum piston |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bearing | PTFE-lined, heat-treated, alloy steel spherical |
| Adjustments | Ride height preload ring |
| Adjuster Type | DSC - Dual Speed Compression |
| Extended | 22.540 |
| Compressed | 16.780 |
| Travel | 5.760 |
| Top Mount | OEM |
| Bottom Mount | Eyelet |
| Fitment notes | Without Air Ride |
| Shipping Dimensions | 90cm x 50cm x 25cm (L x W x H) |
