Description
SP-2000 Features
-
Pure sine wave output
-
Power ON / OFF remote control - Capable
-
Input & output fully isolation
-
Temperature & load controlled cooling fan
-
User friendly interface
-
Output frequency 50/60 Hz selectable by DIP switch
-
Output voltage DIP switch selectable
-
Power saving mode by variable resister
-
3-color LED status indicators
-
Input protection：Reverse Polarity (Fuse) / Under Voltage / Over Voltage
-
Output protection：Short Circuit / Overload / Over Temperature
-
E13 / UL / CE / FCC approved
Main Features
◎ New generation pure sine wave inverter ◎ Higher efficiency, high power density ◎ Selectable output voltage and frequency ◎ Robust aluminum case
AC Output Voltage
200/220/230/240 VAC
Rated Power
2000W (VA)
Surge Power
< 3500W (VA)
Output Waveform
100V series：Pure Sine Wave (THD
Frequency
50/60 Hz ± 0.5% (Dip switch selectable)
DC Output Voltage
─
DC Output Voltage Range
─
DC Input Voltage
12V; 24V; 48V
DC Input Voltage Range
10.5~16.5VDC
Efficiency
92%; 93%; 94%
Operating Temperature
-20~40℃, Power De-rating from 40°C~60°C
Storage Temperature
-30~70℃
Safety
CE / FCC / UL (only for 112/124 GFCI receptacles) / E13

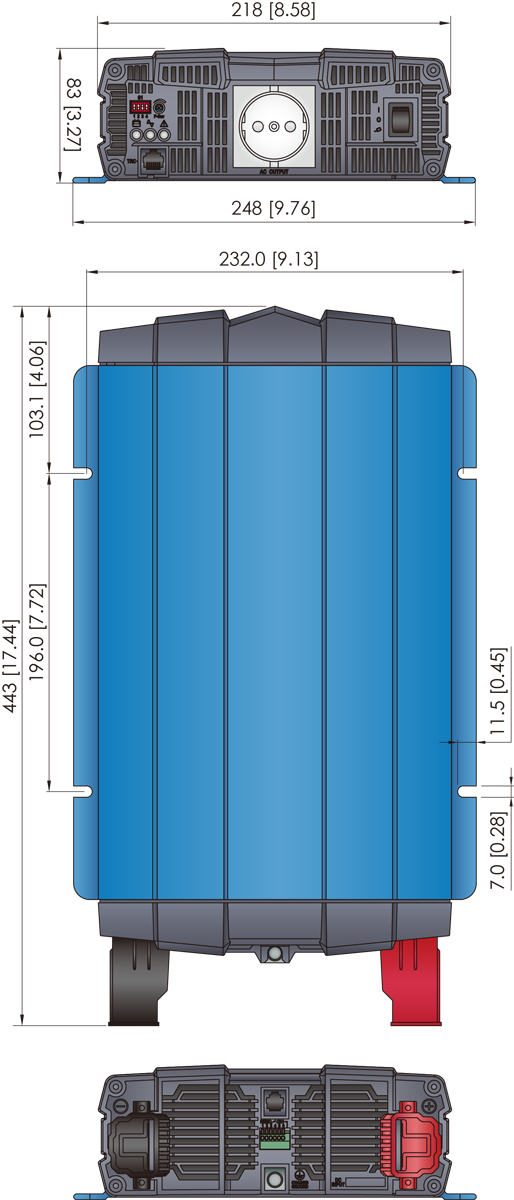

Dimension (WxHxD)
248x83x443 mm
Weight (Net)
5.24kg
Socket Type
Saudi Arabia
Shipping Dimensions.
48cm x 30cm x 16cm (LxWxH)
