Description

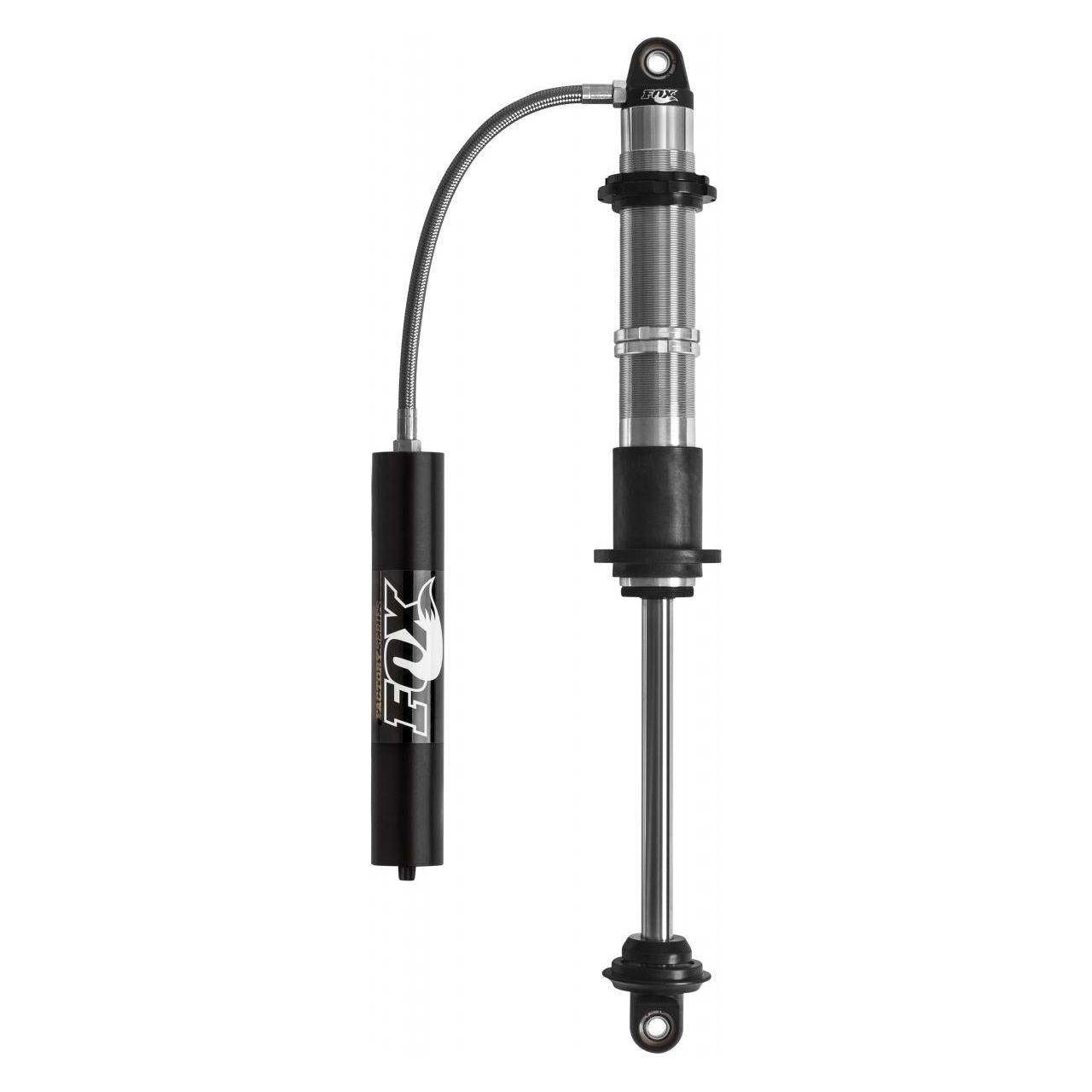

Factory Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.
Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.
| Body | Smooth bore and honed seamless steel |
|---|---|
| Body Plating | Zinc plated for a long-lasting finish |
| Components | Black anodized, CNC machined 6061-T6 billet aluminum |
| Piston | 7075 hard-anodized high-flow aluminum piston* |
| Valving | Tunable, velocity sensitive deburred valve shims |
| Seals | High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal* |
| Shafts | Chrome steel |
| Bearing | Spherical, PFTE-lined, heat-treated alloy steel |
| Spring | Not Included |
| Options | Custom compression and rebound valving available (Add -1 to end of part number) |
| Adjustments | Spring preload ring |
| Dual stage crossover ring | |
| Extended | 31.100 |
| Compressed | 19.100 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Reservoir | Remote |
| Reservoir Size | 2.0 x 11 |
| Hose | -8 x 17.75 |
| Mounting | 1/2 x 1.25 |
| Valving | 50/70 |
