Description

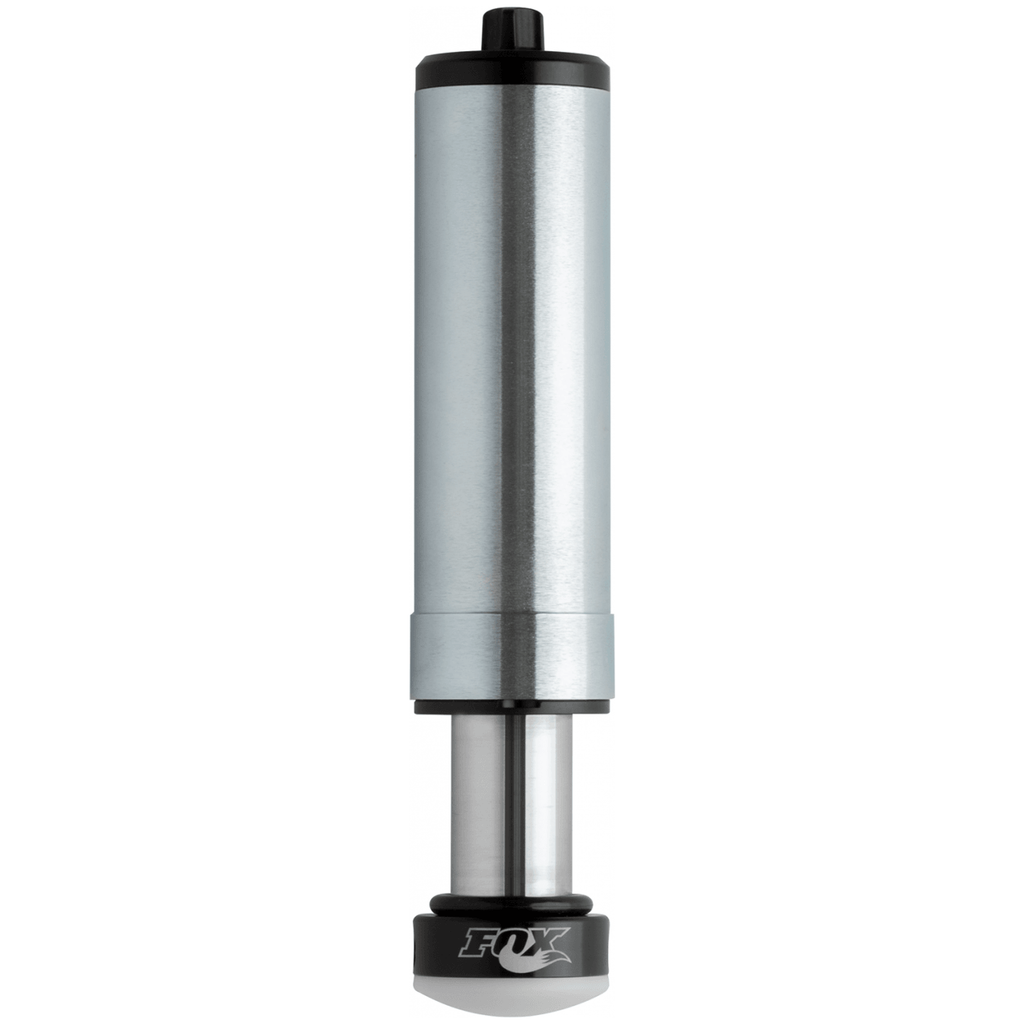

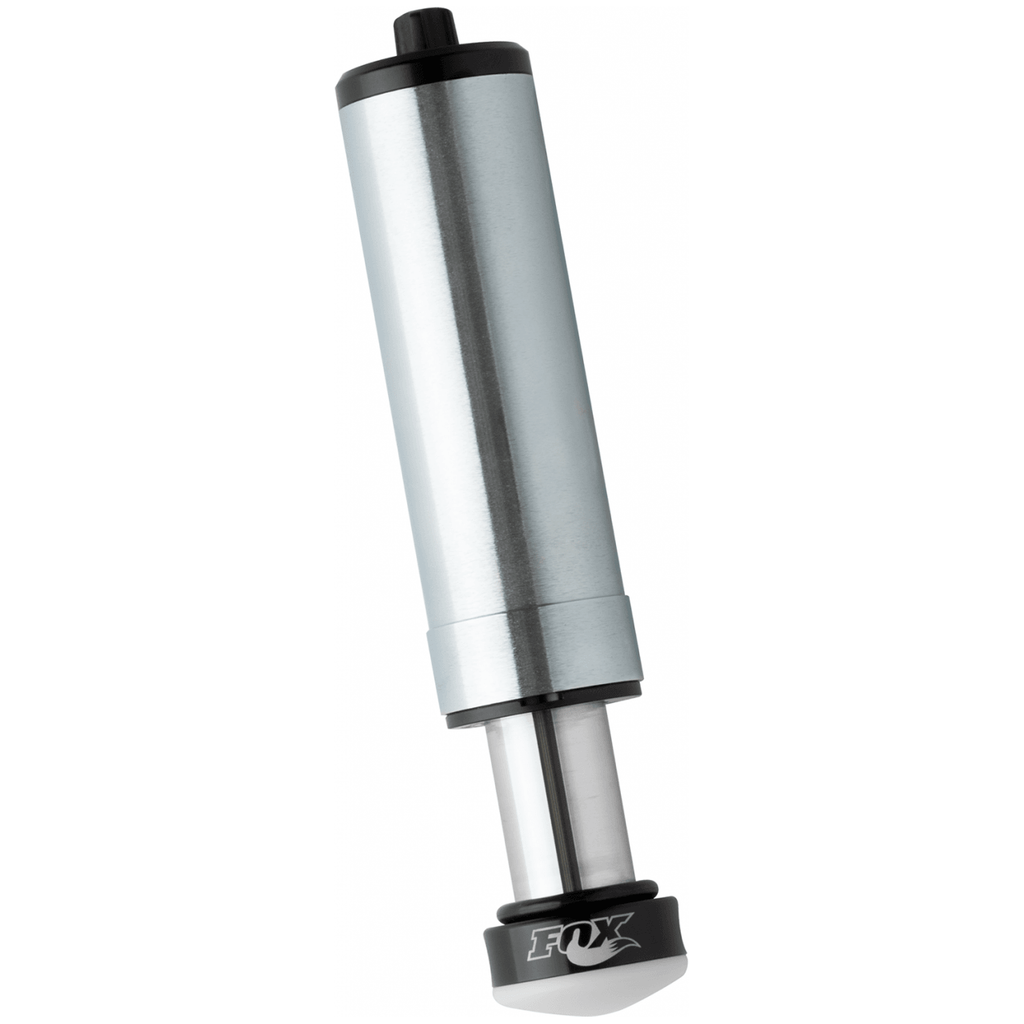

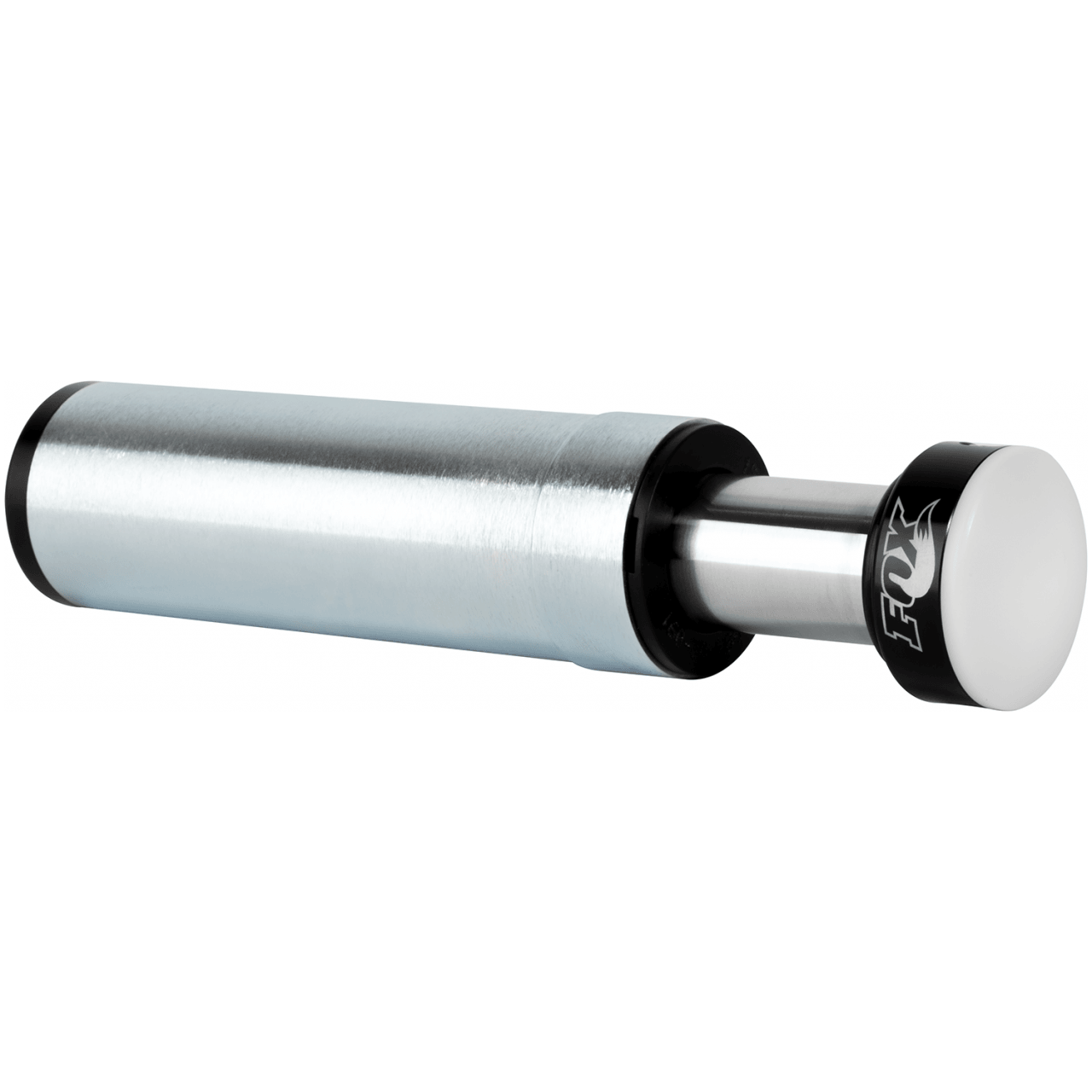

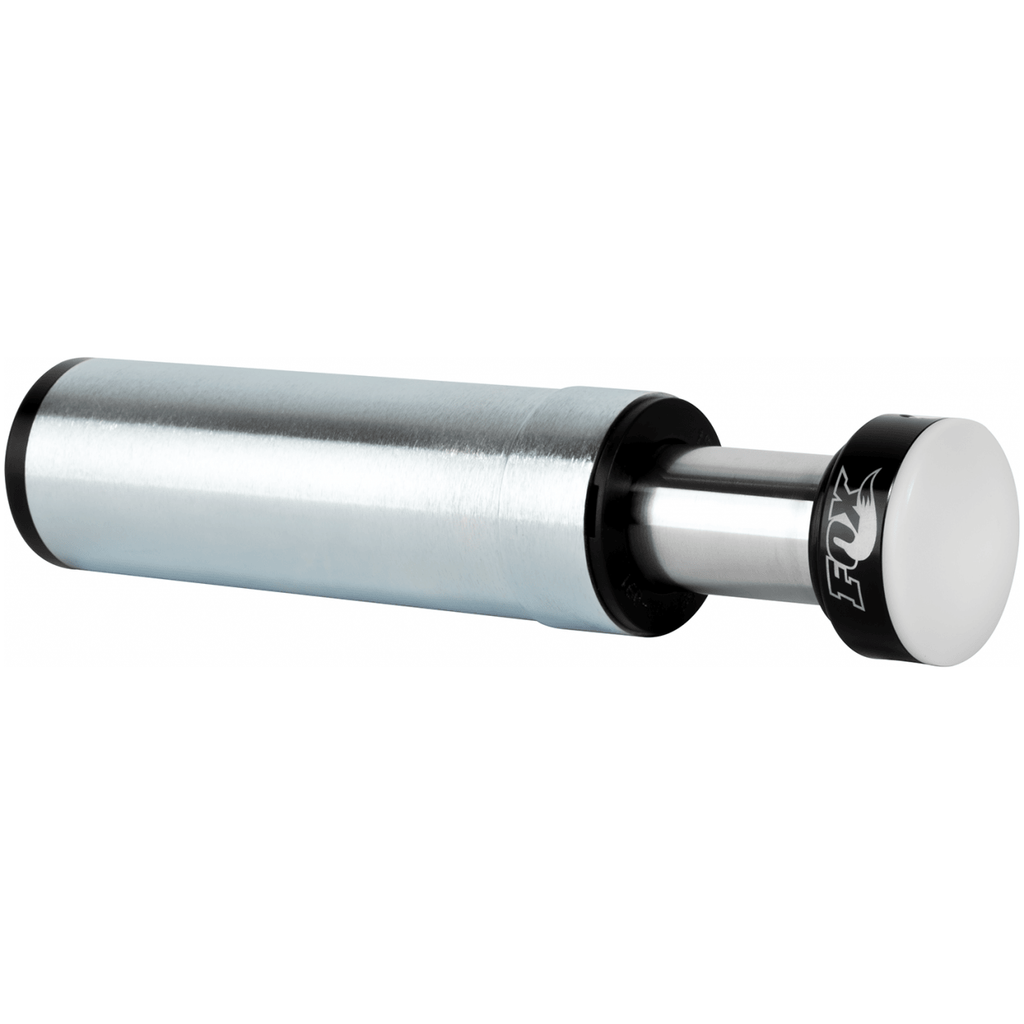

FACTORY RACE 2.0 X 2.0 BUMP STOP.
Off-road Factory Race Series bump stops were developed with top off-road racing teams to provide precise control of the last few inches of suspension travel. By applying our race-proven damping technology in a purpose-built, stand-alone component, you can use every bit of suspension travel without harsh bottoming.

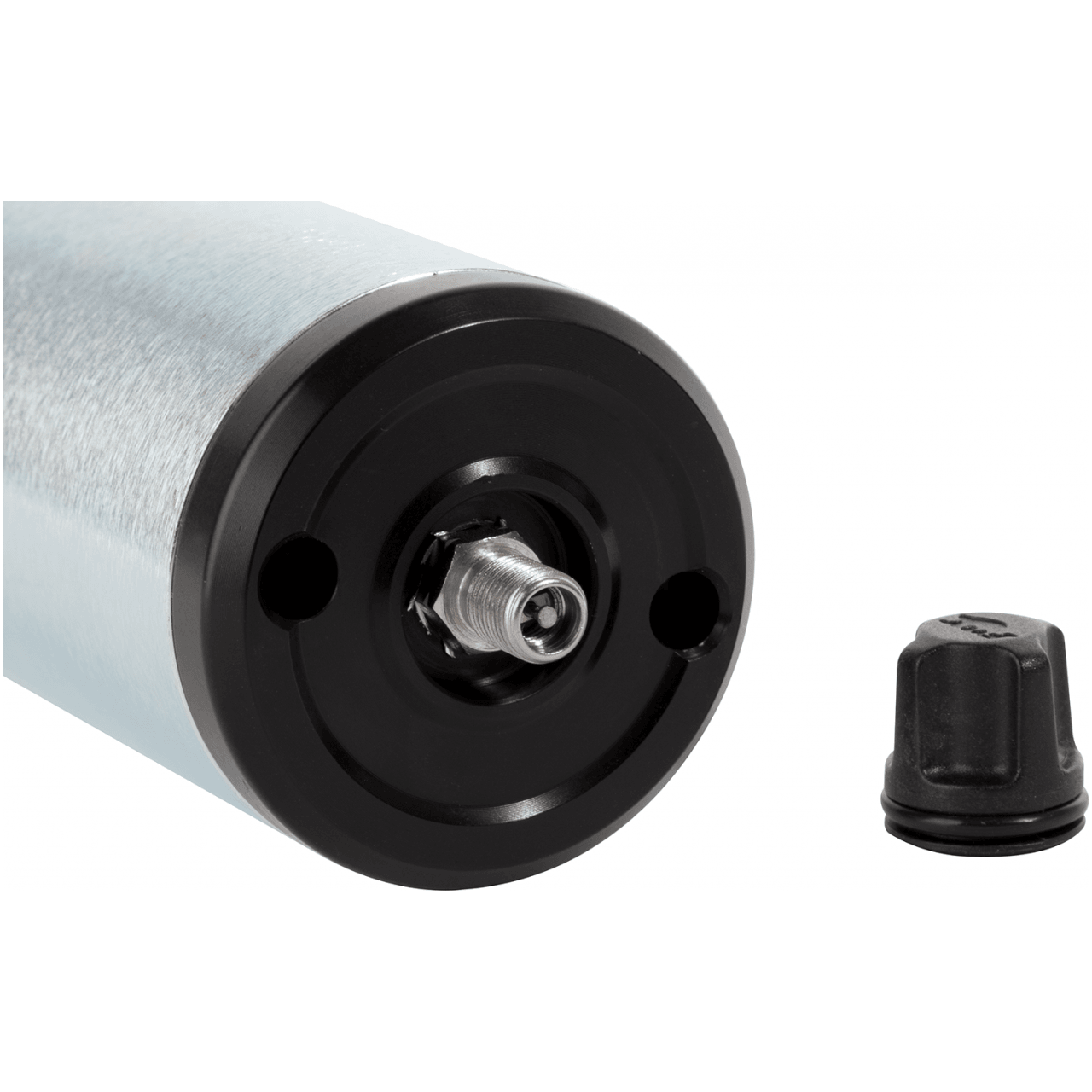

The built-in FOX Air Valve (FAV) Valve allows precise nitrogen charge adjustments to provide a wide range of bottoming control. The durable construction and replaceable Delrin® strike pad are built to take the abuse while providing predictable and quiet operation.
| Body | Smooth bore and honed seamless steel |
|---|---|
| Body Plating | Zinc plated and clear coated for a long lasting finish |
| Components | Black anodized, CNC machined 6061-T6 billet aluminum |
| Valving | Tunable, velocity sensitive deburred valve shims |
| Seals | Redundant sealing pack system, main seal, wiper seal, scraper seal |
| Pad | Replaceable Delrin® strike pad |
| Shafts | Hard chromed 4130 steel |
| Options | Custom compression and rebound valving available (Add -1 to end of part number) |
| Adjustments | Nitrogen Pressure |
| Extended | 9.740 |
| Compressed | 7.700 |
| Travel | 2.040 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Reservoir | Emulsion |
| Mounting | |
| Valving | STANDARD |
| Shipping Dimensions | 46cm x 7cm x 7cm (LxWxH) |
