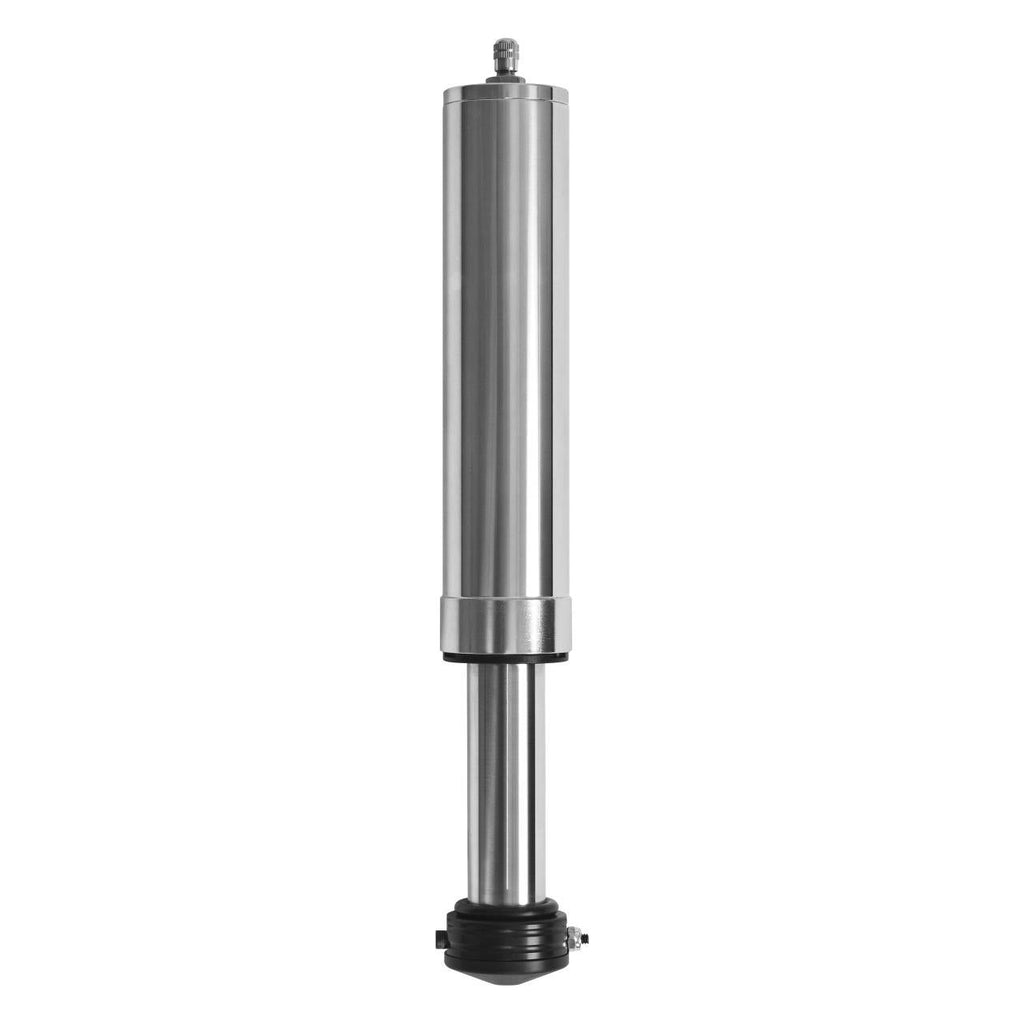

FACTORY RACE 2.0 X 2.5 BUMP STOP
Off-road Factory Race Series bump stops were developed with top off-road racing teams to provide precise control of the last few inches of suspension travel. By applying our race-proven damping technology in a purpose-built, stand-alone component, you can use every bit of suspension travel without harsh bottoming.
The built-in FOX Air Valve (FAV) Valve allows precise nitrogen charge adjustments to provide a wide range of bottoming control. The durable construction and replaceable Delrin® strike pad are built to take the abuse while providing predictable and quiet operation.
| Body | Smooth bore and honed seamless steel | ||
|---|---|---|---|
| Body Plating | Zinc plated and clear coated for a long lasting finish | ||
| Components | Black anodized, CNC machined 6061-T6 billet aluminum | ||
| Valving | Tunable, velocity sensitive deburred valve shims | ||
| Seals | Redundant sealing pack system, main seal, wiper seal, scraper seal | ||
| Pad | Replaceable Delrin® strike pad | ||
| Shafts | Hard chromed 4130 steel | ||
| Options | Custom compression and rebound valving available (Add -1 to end of part number) | ||
| Adjustments | Nitrogen Pressure | ||
| Extended | 11.440 | ||
| Compressed | 8.900 | ||
| Travel | 2.540 | ||
| Top Mount | Eyelet | ||
| Bottom Mount | Eyelet | ||
| Reservoir | Emulsion | ||
| Mounting | |||
| Valving | STANDARD | ||
