Description

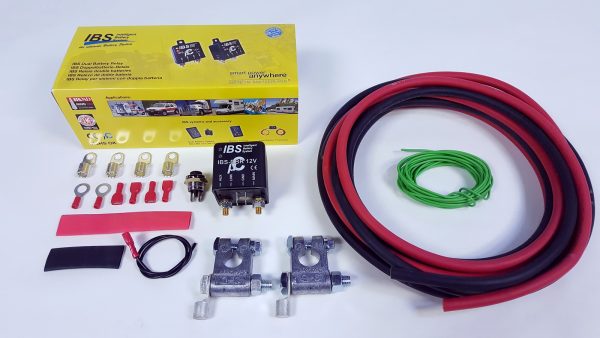

IBS-DBR (Dual-Battery-Relay)
The IBS-DBR (Dual Battery Relay) is the most integrated Dual Battery Management System on the market. Within the IBS Hi- Performance 200A/12V or 100A/24V Relay operates a full MicroComputer system monitoring and controlling the dual battery setup. 15 years experience took place in this very smart relay handling up to 500Amp cross current between the 2 batteries.
Advantage:
- All integrated into the IBS 200A Power Relay
- Very simple under bonnet installation
- External emergency switch for full link start support
- RBM (IBS Relay Booster Module) function integrated for a safe Link Start
- Lowest consumption <1mA
- Optical isolated link terminal to protect internal electronics against misuse and wrong installation
- 13.1V link and 13.0V de-link with time delay matches latest alternator settings e.g. under hot temperatures
- Twin spike protection on Main and Aux terminal
- Operates if one battery is present
- Extended automotive temperature range -40 0C to + 105 0C
- 5 years warranty, (CE, FCC and RoHS compliant)
- Waterproof setup, made for under bonnet installation
- 24V System available (IBS-DBR/24V)
User friendly functions:
- Links if charge is present either on Main or Aux battery
- Link de-activation if AUX battery is missing (trailer), shuts down power to trailer plug
- 30min manual battery link with automatic return
- Full solar system support
- LED indication, link and battery operation status
- Triple Battery setup extension with IBS/DBi
Shipping Dimensions.
21.5cm x 9.5cm x 8.5cm (L x W x H)
