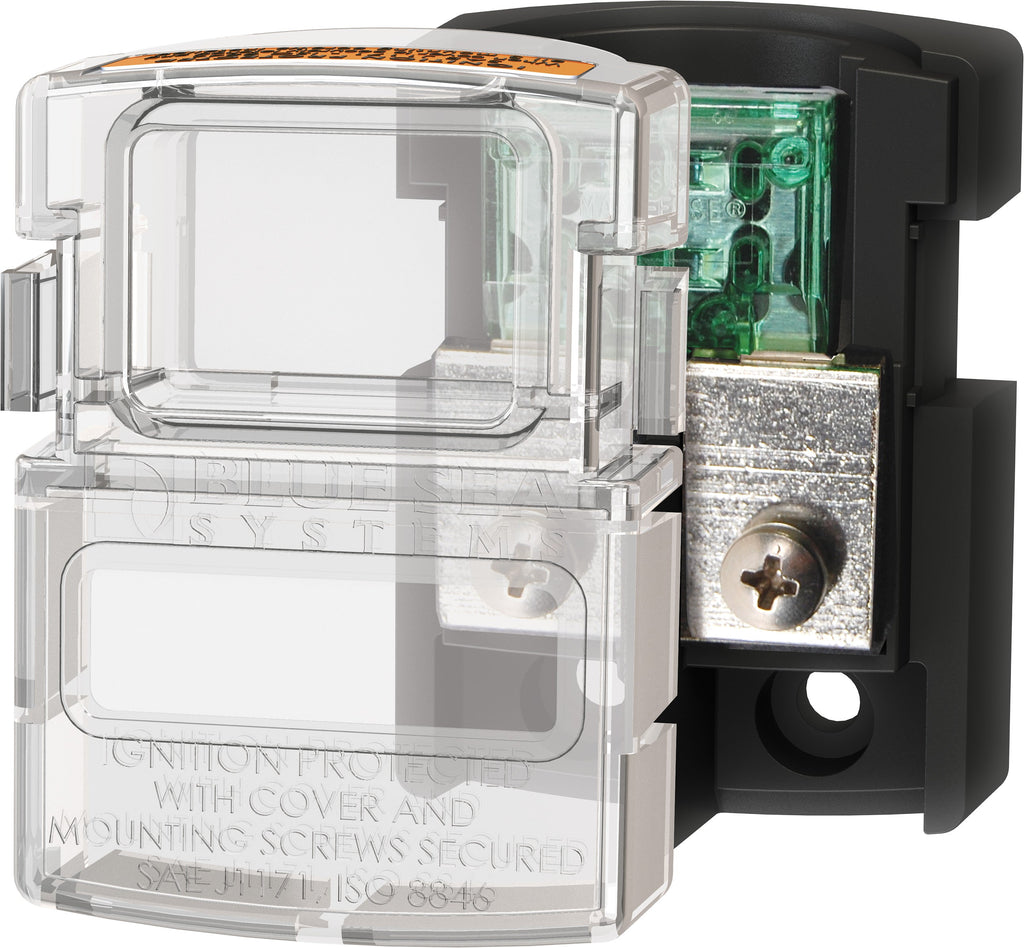

- Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
- Cover breakouts allow wires from sides or bottom
- Terminal screws compress fuse blades within blocks for low resistance connections
- Ignition Protected
- Label recess accepts large format label
- Fuses sold separately
| Specifications |
Maximum Amperage  | 80A
|
| Maximum Voltage | 32V DC
|
| Mounting | #10 Screws
|
| Screw Terminal Torque | 25 in-lb (2.82 Nm)
|
| Wire Size | 14 - 4 AWG
|
| Weight | 0.25lb (0.11 kg) |
