Description

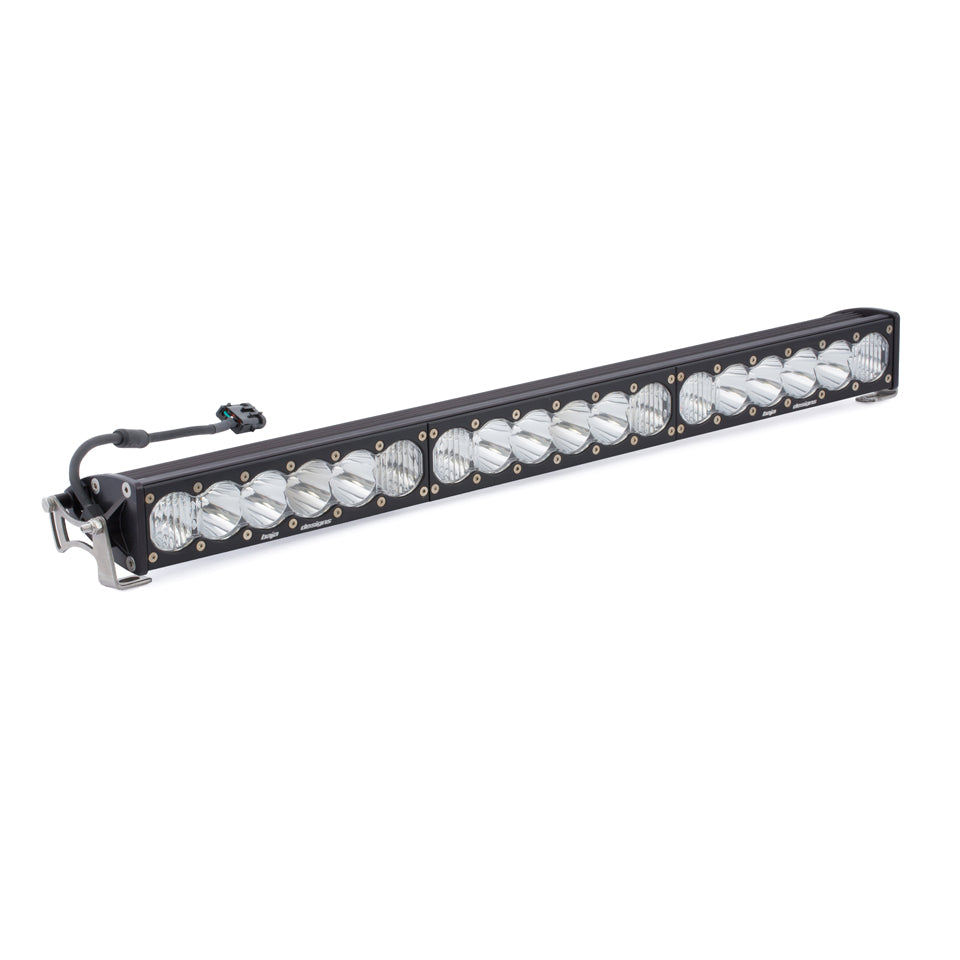

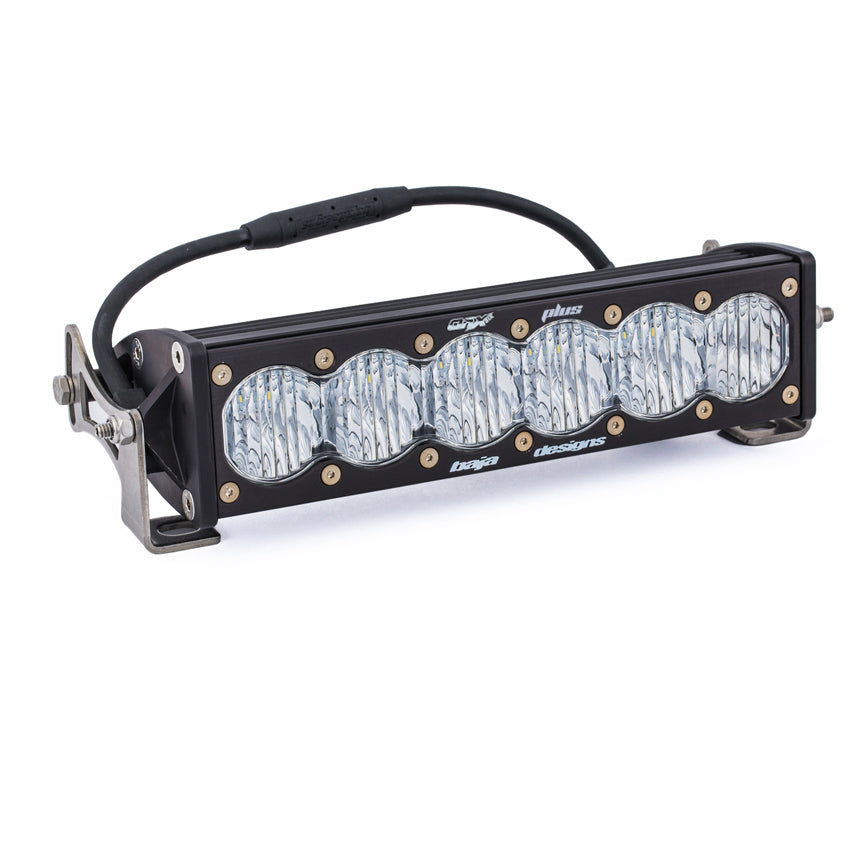

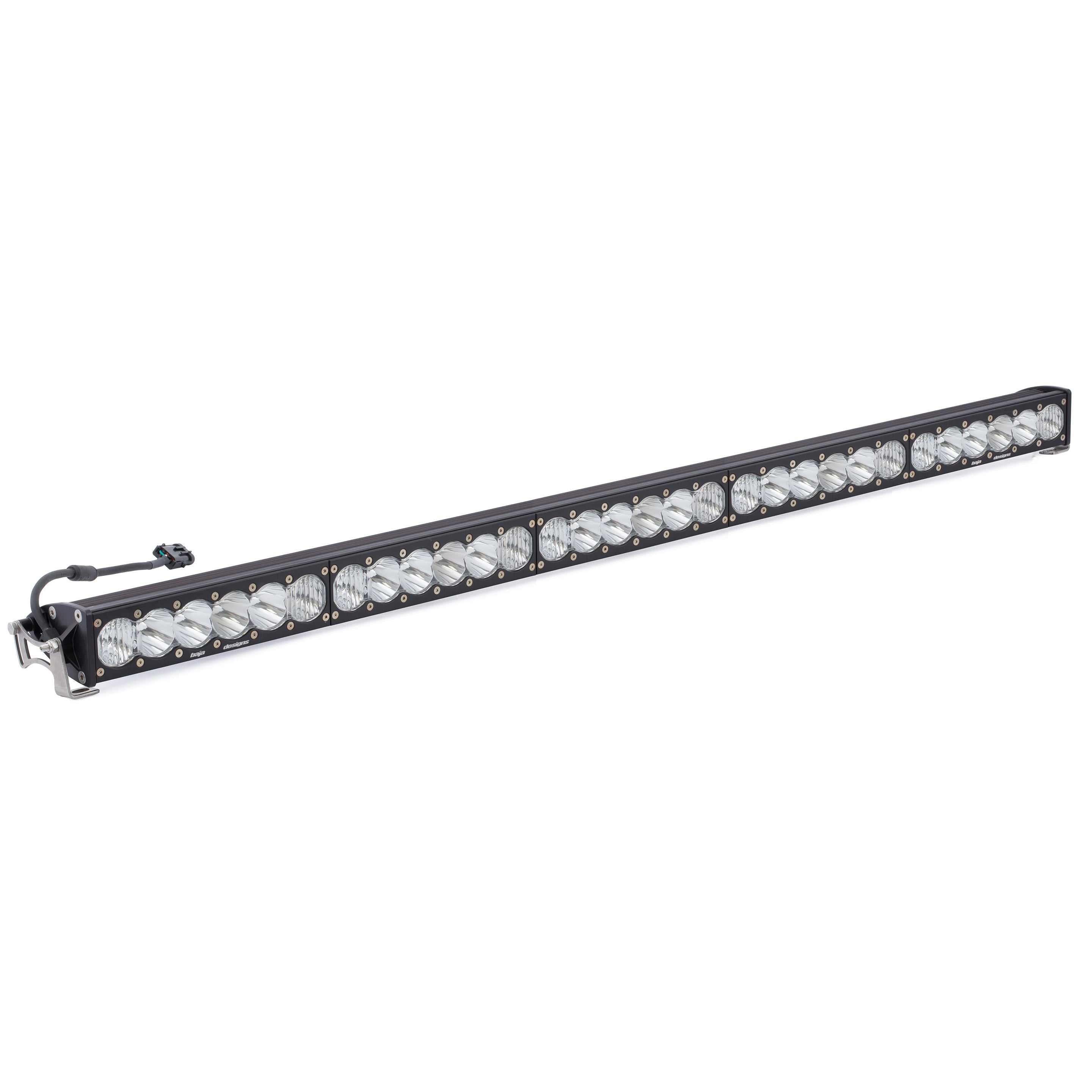

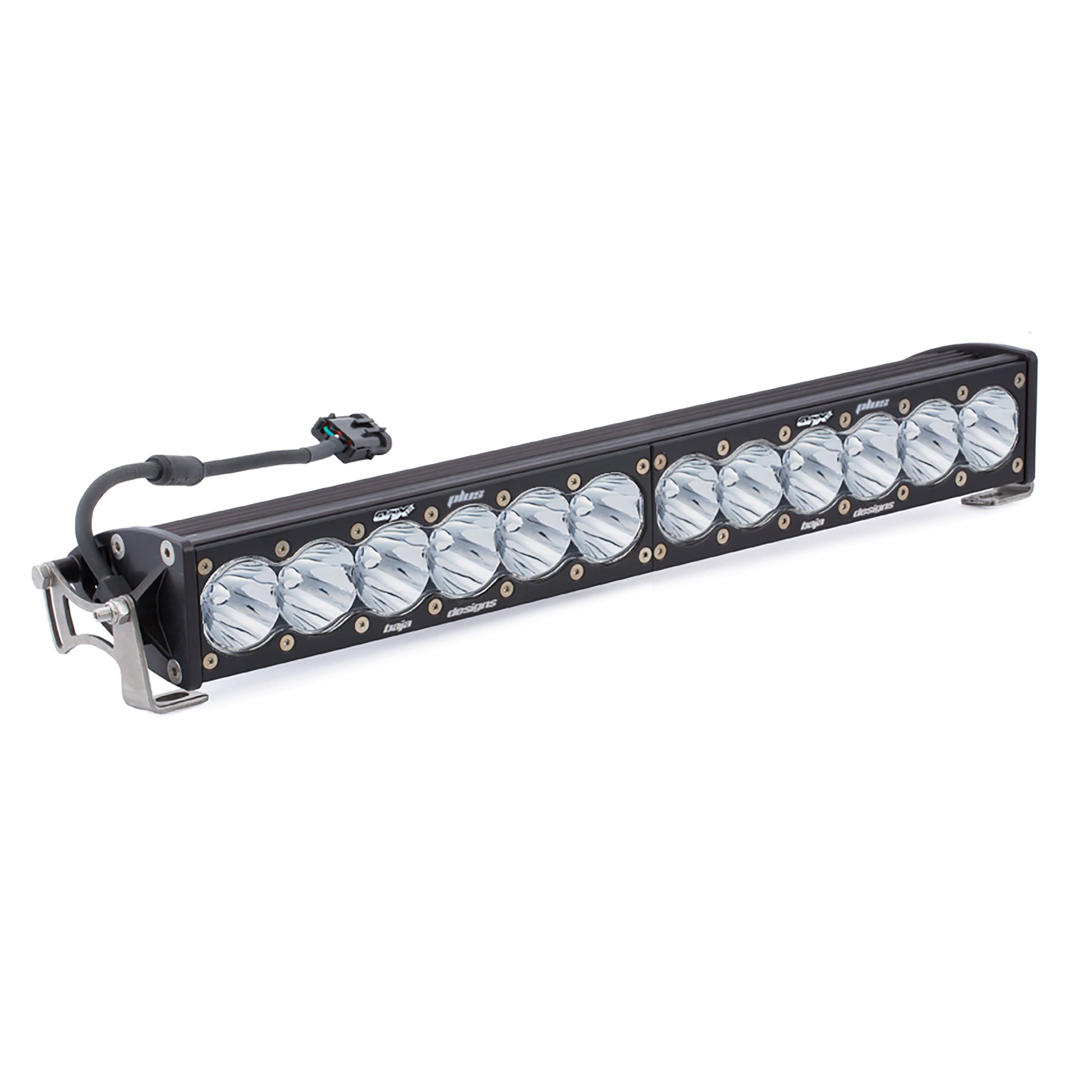

OnX6+ - Starting at 9,230 (low) or 12,450 (high) lumens for a 10" light bar. Features Battery Management Technology (BMT)
OnX6 Racer Edition - 6,450 lumens per 10" section - Engineered for speeds over 110 mph. This bar will shine 40% farther than the standard OnX6 bar.
OnX6 Arc Series - All of the features of our straight OnX6 bars, but with a bend to match the lines of your vehicle.
OnX6 Dual Control - Dual power cord and dual switch. Control the ends of your bar separately from the center sections, for the ultimate in versatility.
Includes:

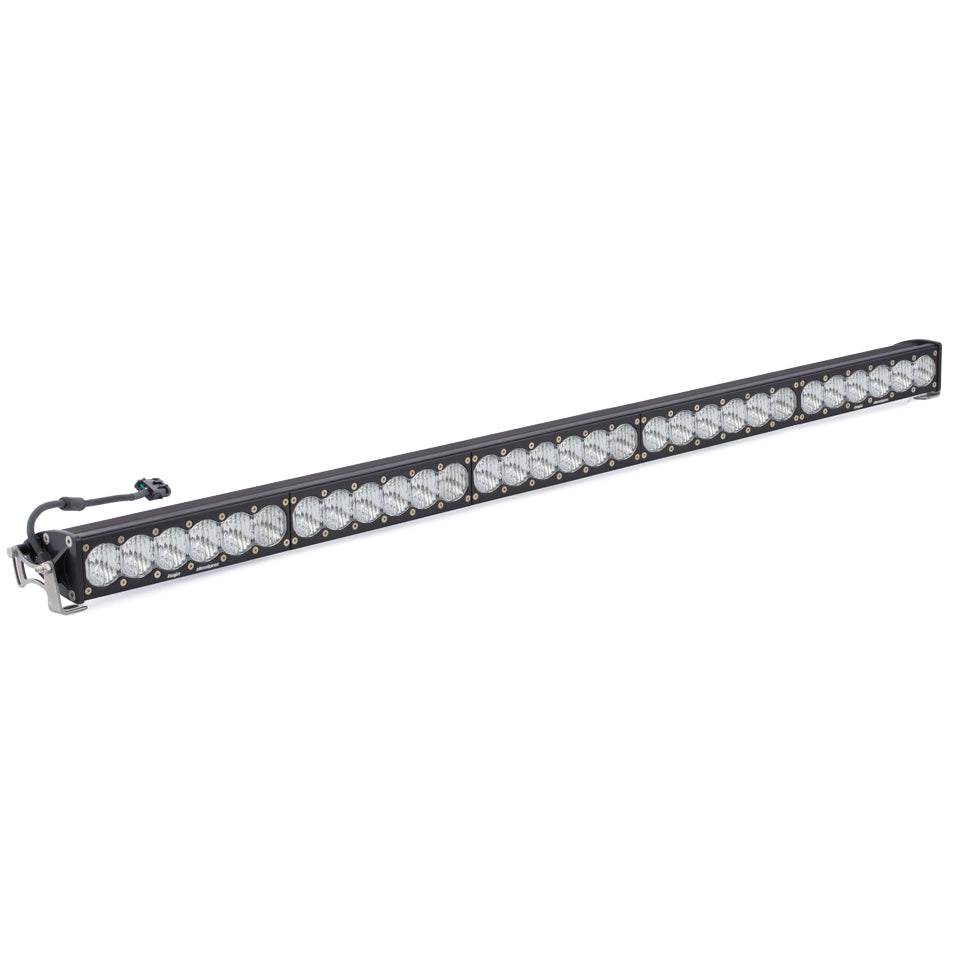

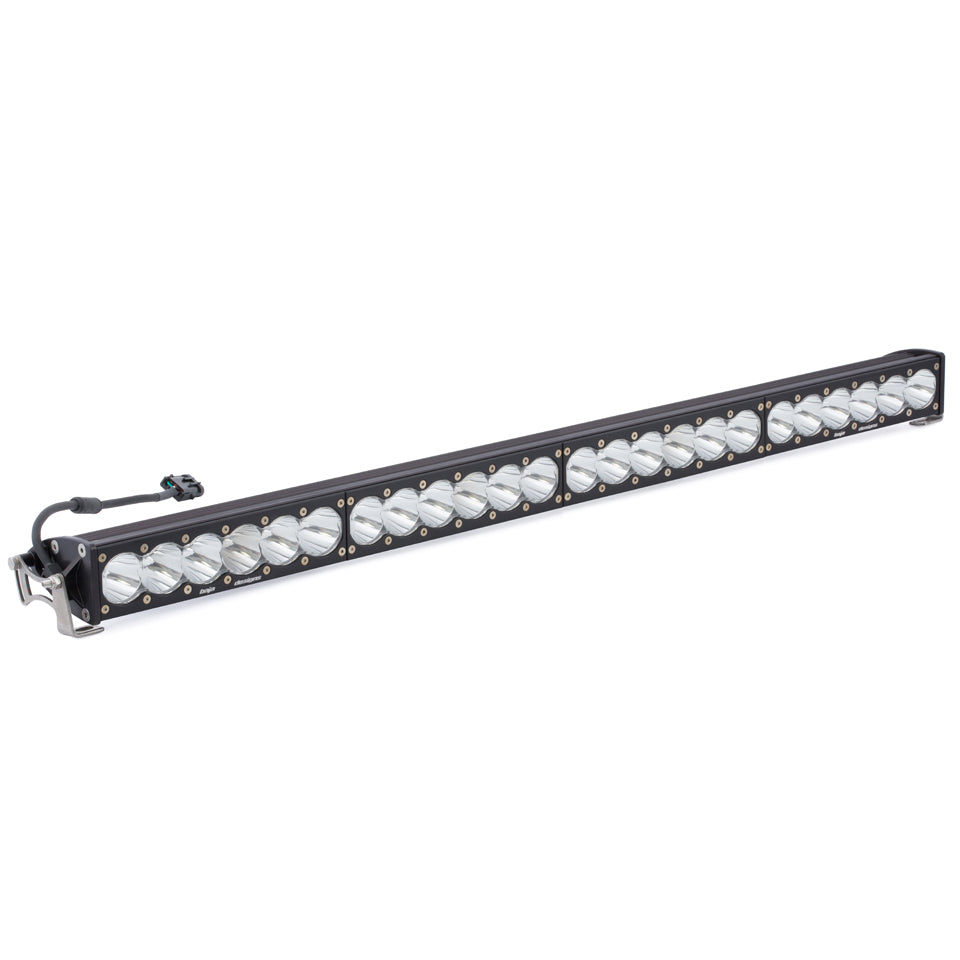

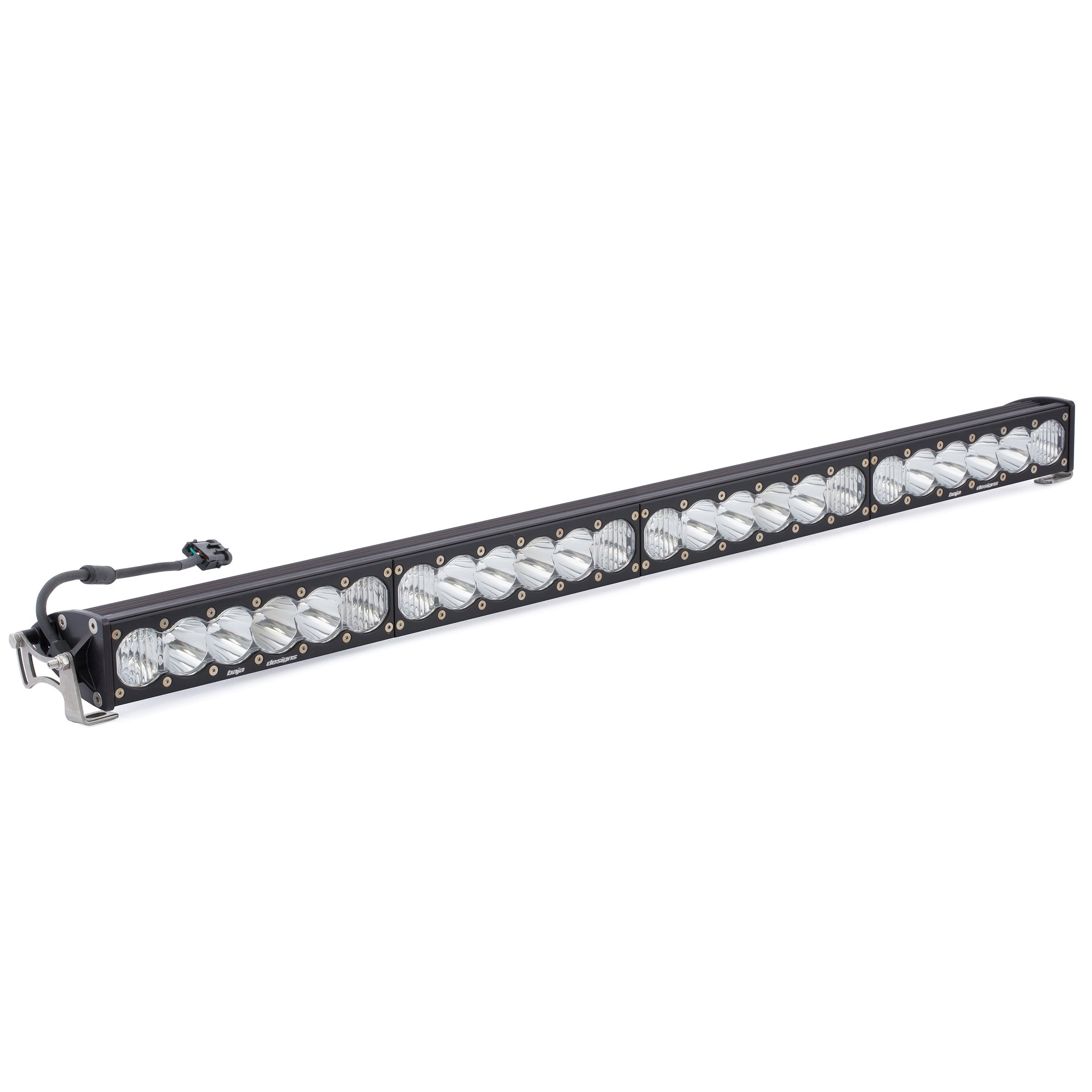

- OnX6+ LED Light Bar
- Mounting Brackets
Please note that this light does NOT include a harness and the applicable harness to this light is 640119
Patterns:

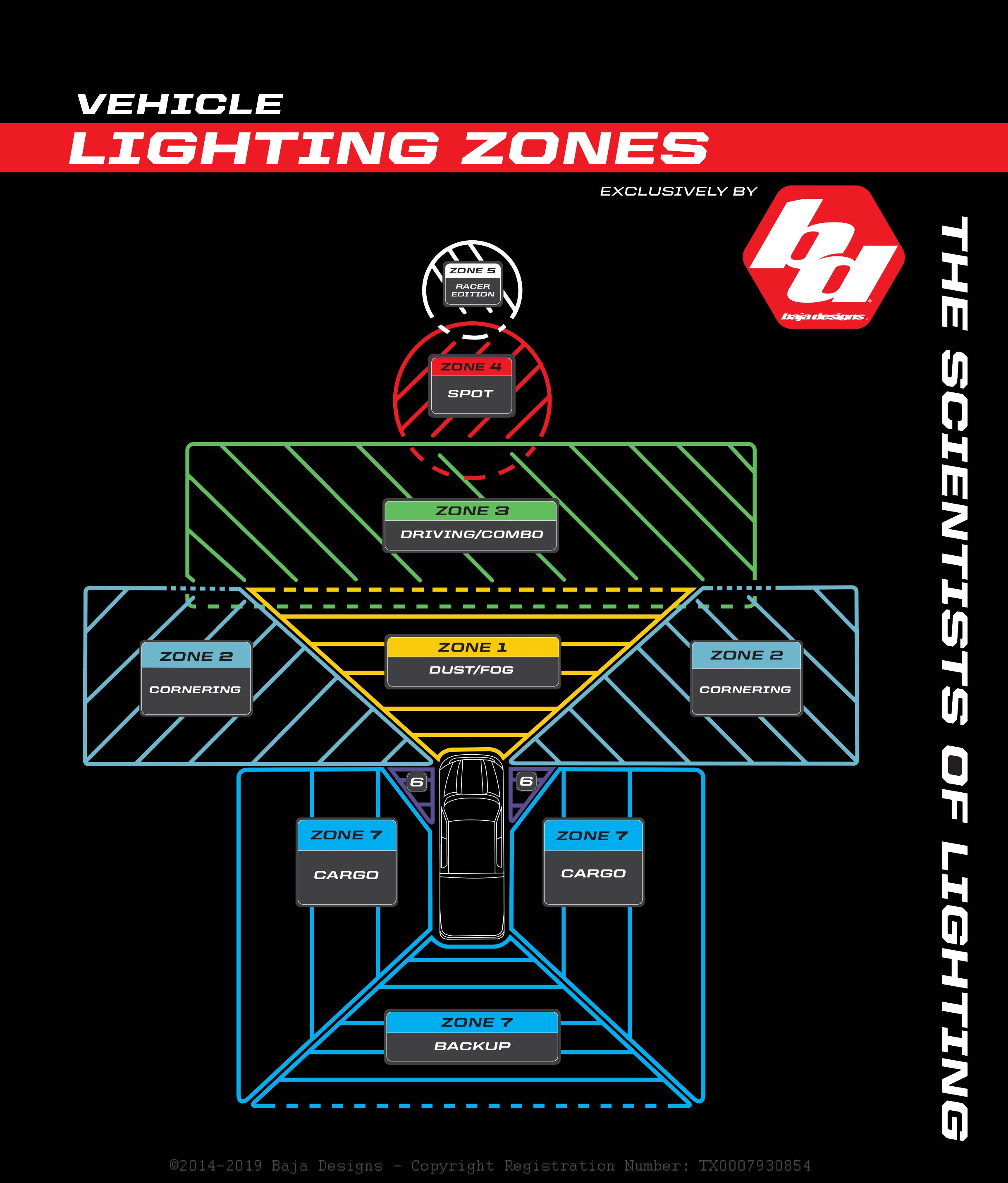

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

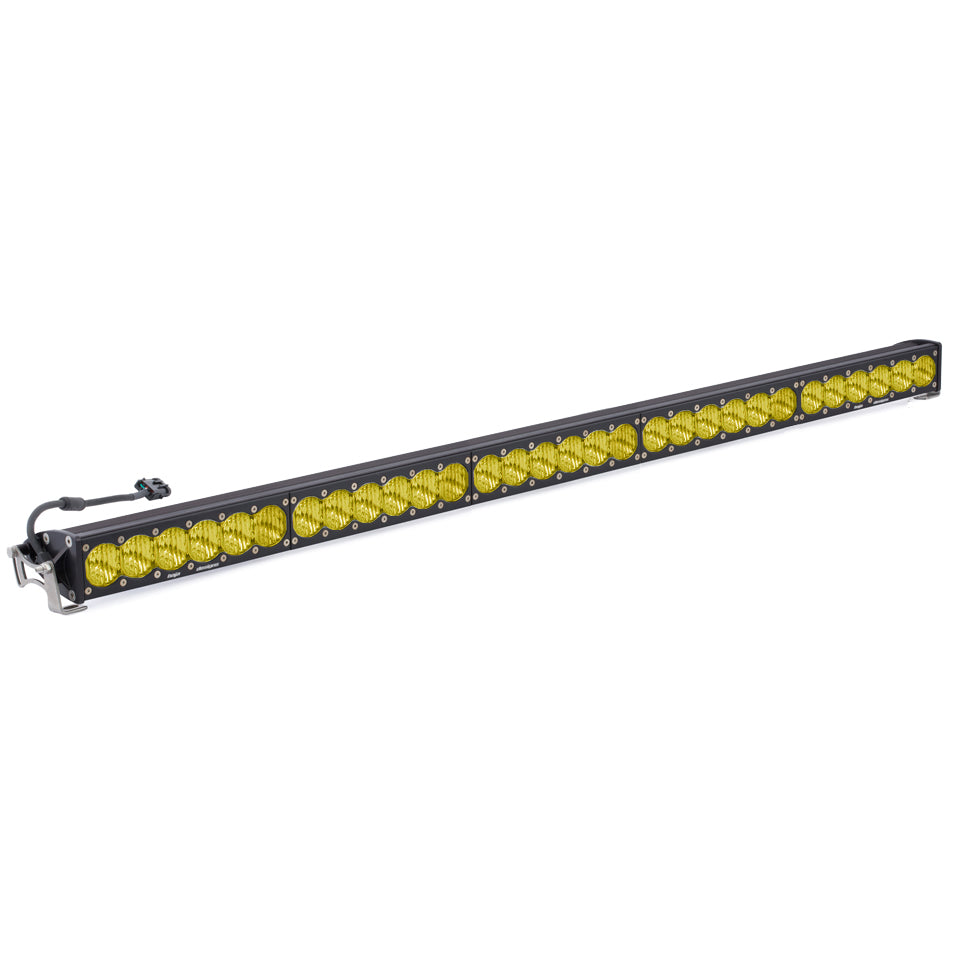

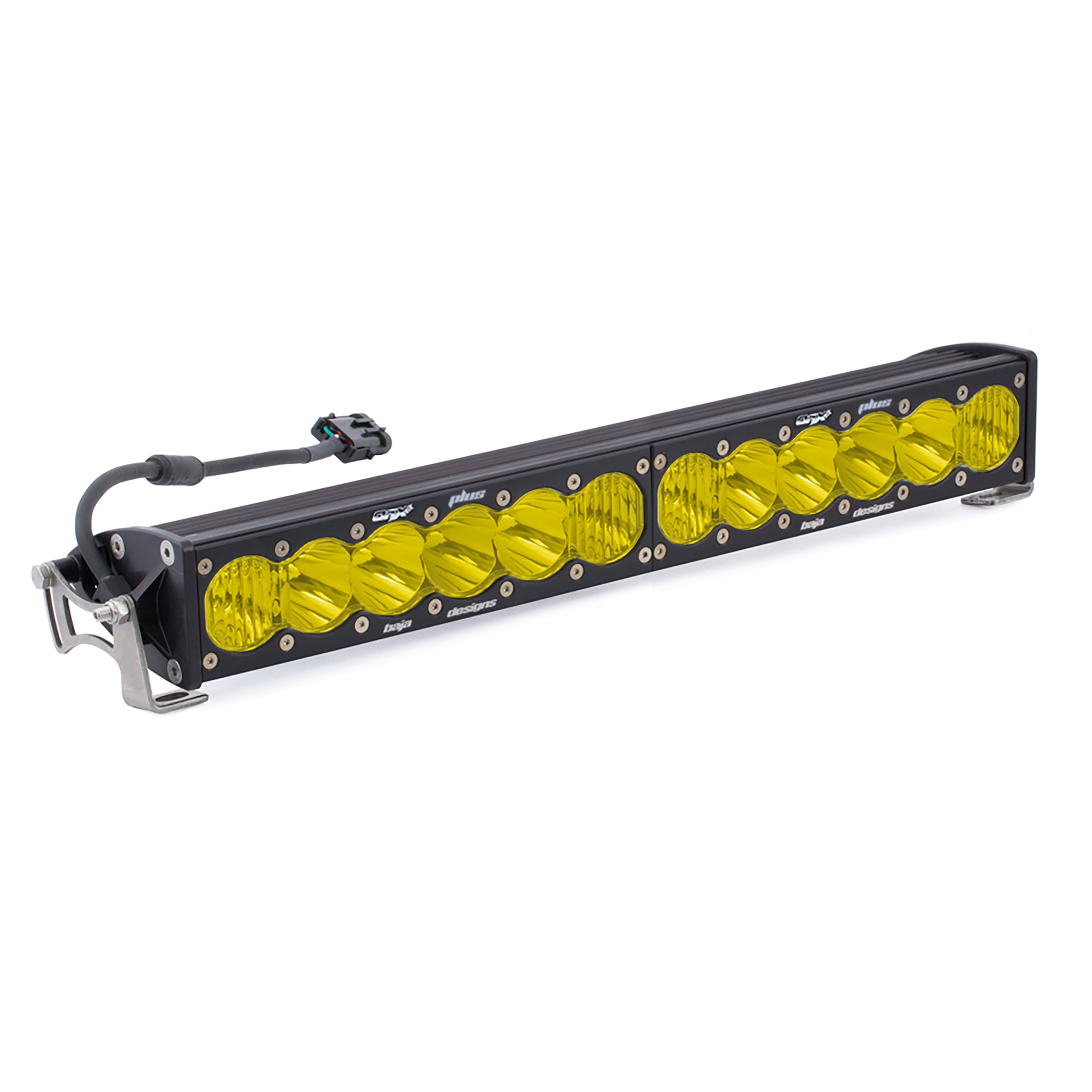

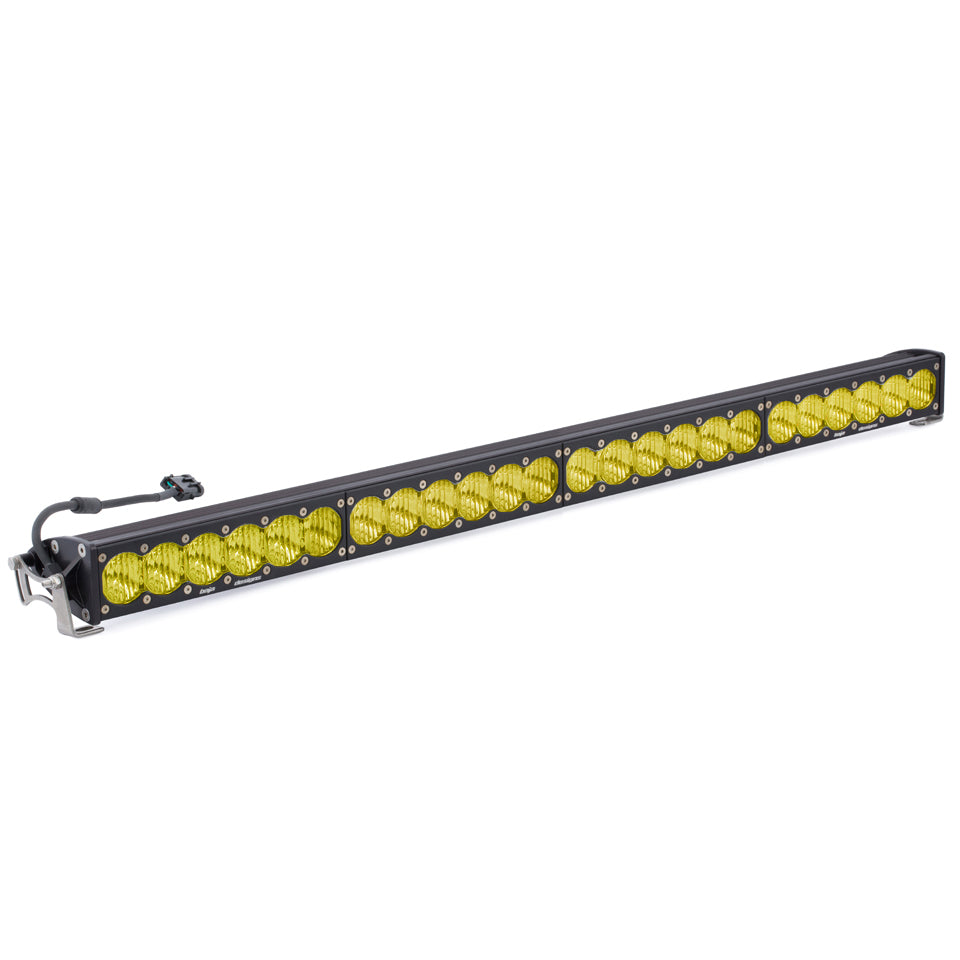

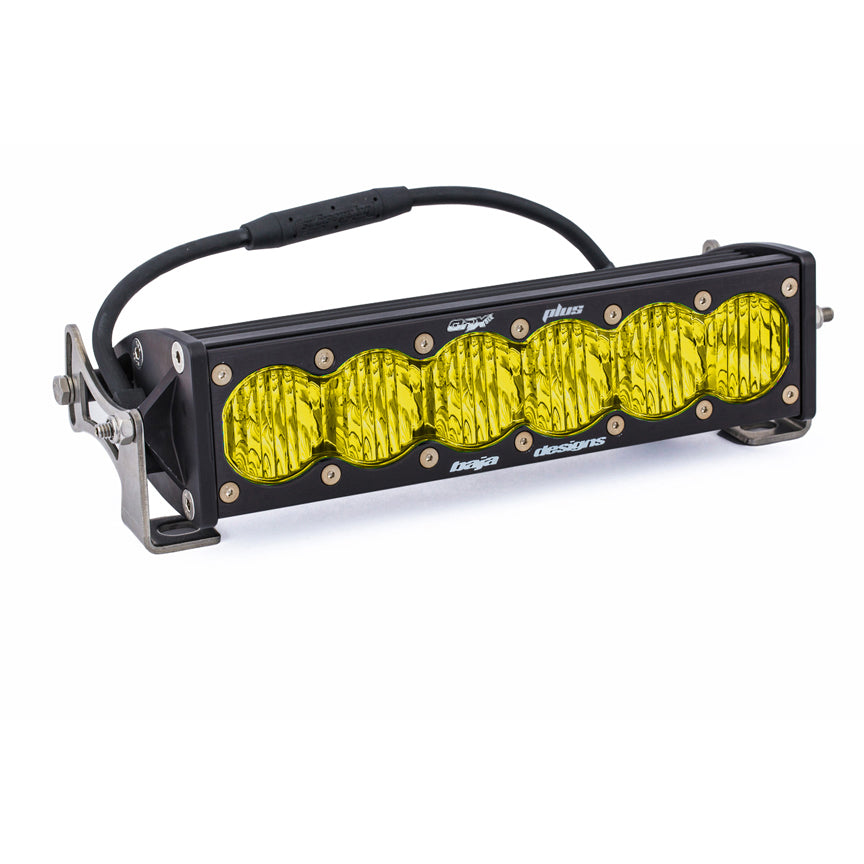

Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Shipping Dimensions.10inches
42cm x 17cmx 14cm (LxWxH)
Shipping Dimensions.20inches
68cm x 17cm x 14cm (LxWxH)
Shipping Dimensions.30inches
93cm x 17cm x 14cm (LxWxH)
Shipping Dimensions.40inches
120cm x 17cm x 14cm(LxWxH)
Shipping Dimensions.50inches
144cm x 17cm x 14cm (LxWxH)
