Description
Lift : 0-1.5"
Fit : F250SD/F350SD
Position : Front

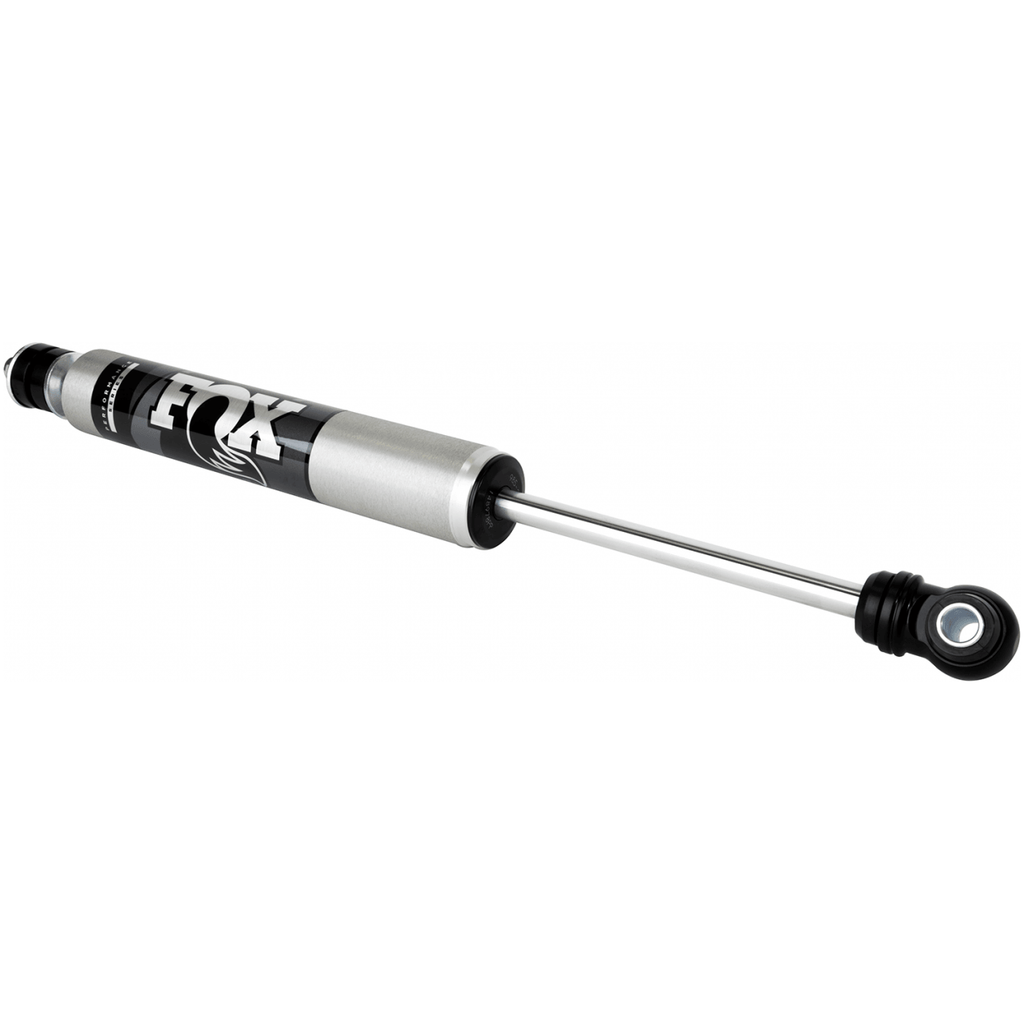

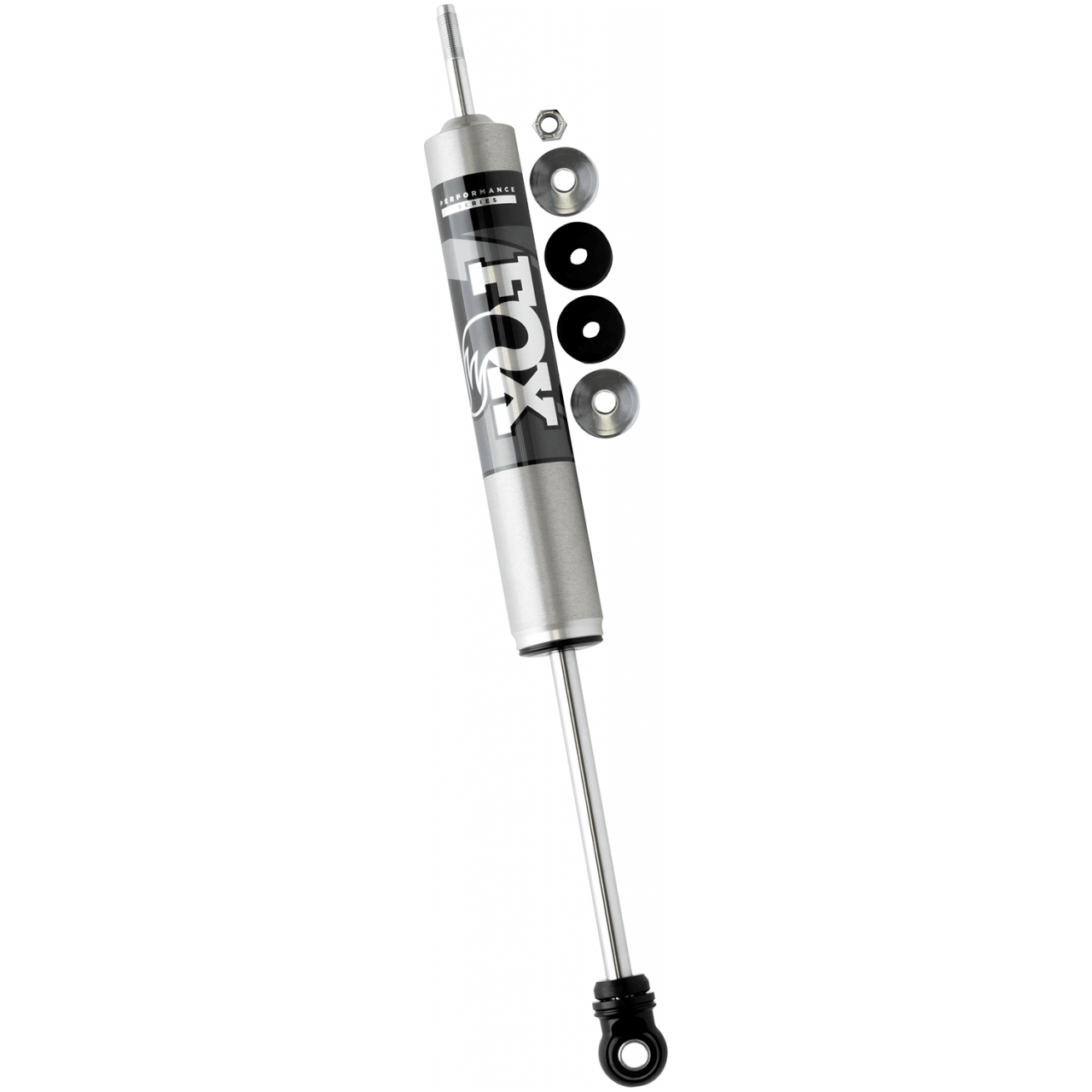

The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
| Body | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
|---|---|
| Body Plating | Clear-anodized for a durable finish |
| Reservoir | Internal IFP mono-tube reservoir design |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8" hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Bushings | Quiet nitrile rubber allows for increased suspension articulation |
| Extended | 22.280 |
| Compressed | 13.900 |
| Travel | 8.130 |

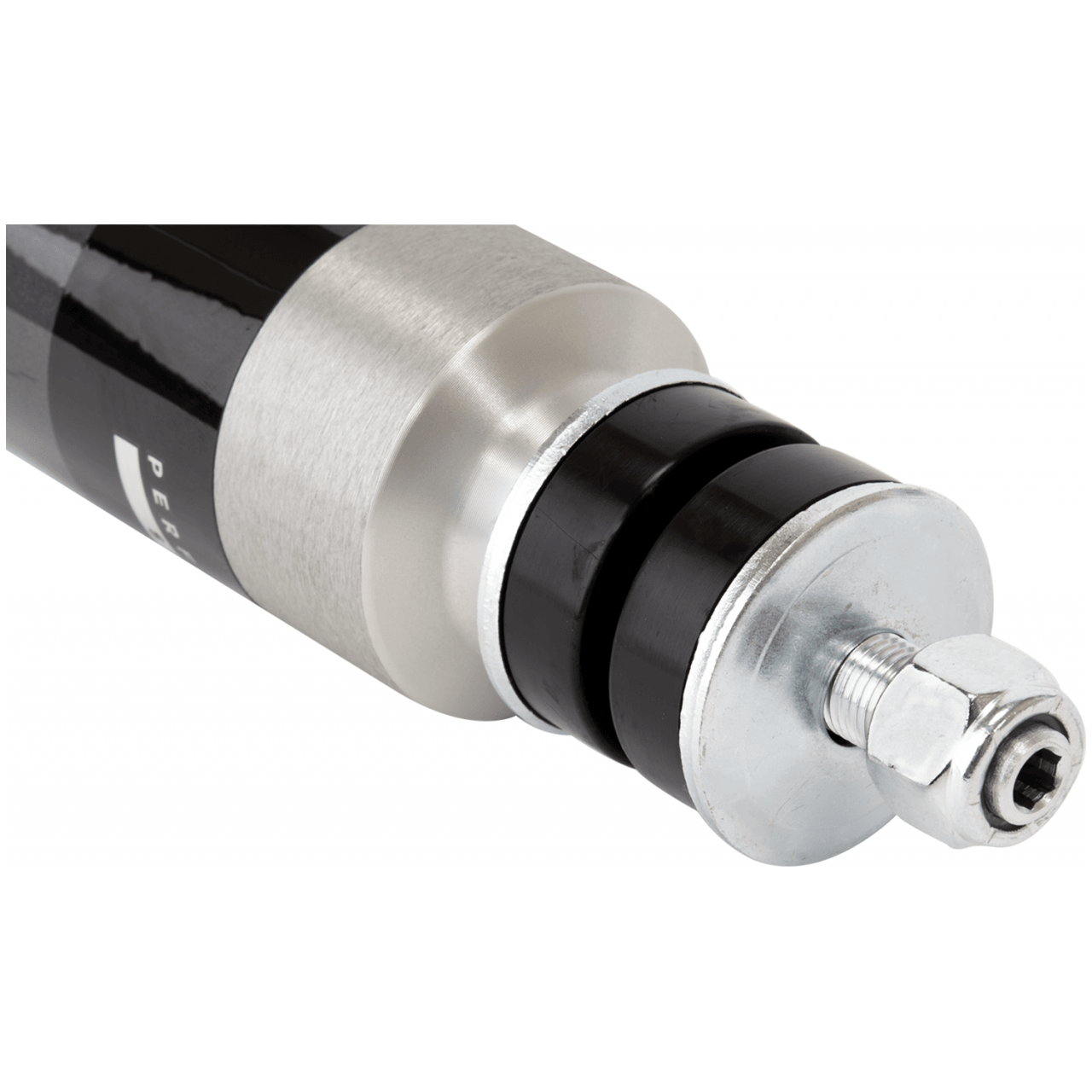

| Top Mount | Stem Top |

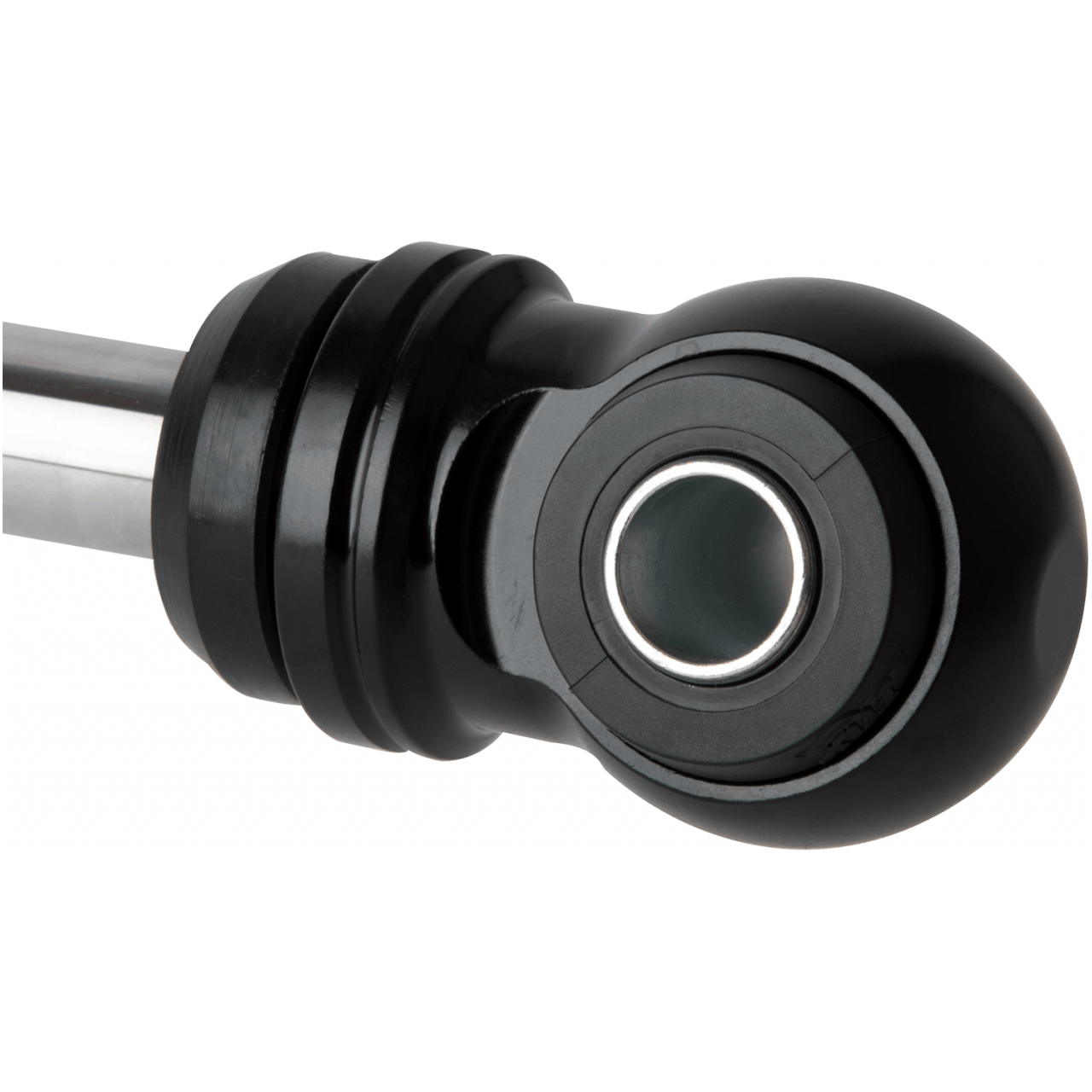

| Bottom Mount | Eyelet |
| MAKE | MODEL | YEAR | POSITION | WD | LIFT |
| Ford | F-250 Super Duty | 2023 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Crew Cab Pickup | 2023 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Extended Cab Pickup | 2023 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Standard Cab Pickup | 2023 | Front | 4WD | 0-1.5" |
| Ford | F-250 Super Duty | 2022 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Crew Cab Pickup | 2022 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Extended Cab Pickup | 2022 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Standard Cab Pickup | 2022 | Front | 4WD | 0-1.5" |
| Ford | F-250 Super Duty | 2021 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Crew Cab Pickup | 2021 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Extended Cab Pickup | 2021 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Standard Cab Pickup | 2021 | Front | 4WD | 0-1.5" |
| Ford | F-250 Super Duty | 2020 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Crew Cab Pickup | 2020 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Extended Cab Pickup | 2020 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Standard Cab Pickup | 2020 | Front | 4WD | 0-1.5" |
| Ford | F-250 Super Duty | 2019 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Crew Cab Pickup | 2019 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Extended Cab Pickup | 2019 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Standard Cab Pickup | 2019 | Front | 4WD | 0-1.5" |
| Ford | F-250 Super Duty | 2018 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Crew Cab Pickup | 2018 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Extended Cab Pickup | 2018 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Standard Cab Pickup | 2018 | Front | 4WD | 0-1.5" |
| Ford | F-250 Super Duty | 2017 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Crew Cab Pickup | 2017 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Extended Cab Pickup | 2017 | Front | 4WD | 0-1.5" |
| Ford | F-350 Super Duty Standard Cab Pickup | 2017 | Front | 4WD | 0-1.5" |
