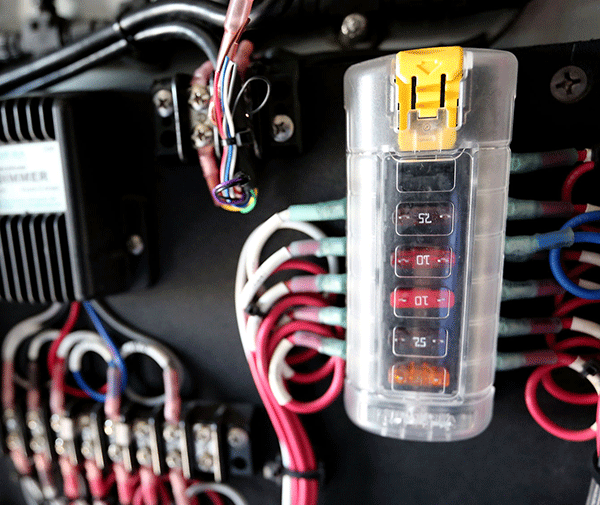

Description
- Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system
- Clear insulating cover with label recesses accepts Small Format Labels
- Spare fuse holder in cover
- Accepts ring or snap fork type terminals
- Includes two terminal block jumpers
| Specifications | |
|---|---|
| Circuits | 6 |
Maximum Amperage  | 30A per circuit 40A per jumped circuit group |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 with Captive Star Lockwasher |
| Weight | 0.35lb (0.16 kg) |
| Shipping Dimensions | 20cm L x 10cm W x 5cm H |
